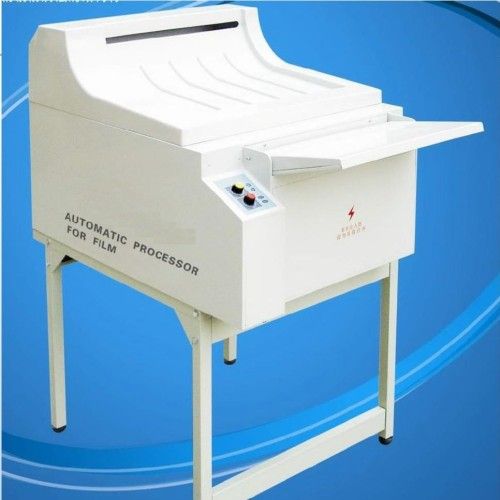

HXP-F High Quality X-ray Machine Film Processor

HXP-F High Quality X-ray Machine Film Processor

1850 USD

add to cart
Model NO. HXP-F
Medical Device Regulatory Type Type 1
Developed Film Size 5' X 7'~14' X 17't;~14" X 17" X 17"
Channel Volume 9L
Developing Speed 90s ~ 180s at Option
Developing Capacity 150PCS/H
Place of Orign China
Transport Package Wooden Case
Origin Jiangsu, China
Medical Devices Reg./Record No. Sssyjxz20111310437
Certificate CE ISO
Max. Developing Width 356mm (14')")quot;)
Power Source AC220V, 50/60Hz
Developing Temp. 28°c--35°c at Option at Optionat Option
Gross Weight 155 Kg
Trademark healicom
Specification CE ISO
HS Code 9022199090
Product Characteristic:
Equipment Figure: New designed body and beautiful outlook. Taking films very expediently due films turn above.
Equipment Frame: Narrow frame make operate easily and break, install simply. Easy to clear, check and repair.
Install & Adjustment: Occupy small ground, install very freely, fit full dark room or half dark room.room.room.
Film-Sending Frame: For 'U' shape continue rolling and no touch guide system design, no risk of film jamming or scratch and body shadow. Through full developing, fixing and washing, image make very clear and no change for long time. long time.
Critical Parts: The rollers' material can resist high-temperate and crystallization. No change shape and swell for using long time.
Circuit Control: Microprocessor controls heating, automatic check and touch films, replenishing chemicals.
Energy-Saving: Keep sleep situation when no films need process after a while. Stop heating and rolling, then cut enter water. This can save energy for max limit.
Automatic film developer Specifications:
Developed film size 5' x 7'~14' x 17';~14" x 17" x 17"
Max. developing width 356mm (14')quot;)
Channel volume 9L
Developing speed 90S ~ 180S at option
Developing temp. 28°C--35°C at optionat optionat option
Developing capacity 140 pcs/h
Power source AC220V, 50/60Hz
Power 1.8kw
Net weight 90kg
Gross weight 155 kg
Packing 1340x750x1300 (L*W*H)
