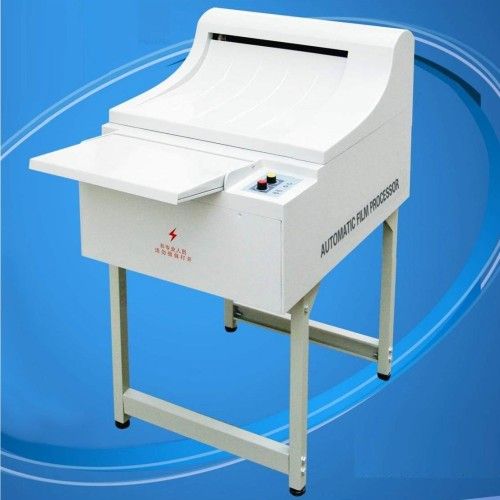

HXP-T Medical X-ray Film Processor

HXP-T Medical X-ray Film Processor

1500 USD

add to cart
Model NO. HXP-T
Medical Device Regulatory Type Type 1
Developed Film Size 5' X 7'~14' X 17't;~14" X 17" X 17"
Channel Volume Developer 4.3L, Fixer 3.6L, Water 3.6L
Developing Speed 180s or 100-180s at Option
Developing Capacity 100PCS/H
Place of Orign China
Transport Package Wooden Case
Origin Jiangsu, China
Medical Devices Reg./Record No. Sssyjxz20111310437
Certificate CE ISO
Max. Developing Width 430mm (17')")quot;)
Power Source AC220V, 50/60Hz
Developing Temp. 28°c--35°c at Option at Optionat Option
Warranty 12 Months
Trademark healicom
Specification CE ISO
HS Code 9022199090
Product Characteristic:
Produce technology: The out casing is made of plastics mould. It's very strong, durable and anti-corrode.
Equipment Figure: New designed small body and beautiful outlook. Taking films very expediently due films turn above.
Install & Adjustment: Occupy small ground, install very freely, fit any dark room and put it on the table directly.ctly.ctly.
Film-Sending Frame: Safe Film-Sending systems come from one whole design, no films jamming or scratch.
High-Effect Drying: New wind route technical can blow all little water spot on the films. At the high net surrounding, can get distinct clear cut films.
Film-sending Board with Cover: Light and close film-sending cover board, operator may open lamp and leave after enter films. This design make work easily and improve work effect.
Critical Parts: The rollers' material can resist high-temperate and crystallization. No change shape and swell for using long time.
Circuit Control: Microprocessor controls heating, automatic check and touch films, replenishing chemicals.
Energy-Saving: Keep sleep situation when no films need process after a while. Stop heating and rolling, then cut enter water. This can save energy for max limit.
Automatic film developer Specifications:

Developed film size

5' x 7'~14' x 17';~14" x 17" x 17"

Max. developing width

430mm (17')quot;)

Channel volume

developer 6L, fixer 3.6L, water 6L

Developing speed

180S or 100-180S at option

Developing temp.

28°C--35°C at optionat optionat option

Developing capacity

80pcs/h

Power source

AC220V, 50/60Hz

Power

1.5kw

Net weight

40kg

Gross weight

100kg

Packing

1050 x 830 x 710 (L x W x H)
