My-E007 Medical Supply Hot Sale Anesthesia Machine
bargain
add to cart| Model NO. | MY-E007 |
| Kind | Gynaecology |
| Group | All |
| Source | Air |
| Type of Operating Light | Double Operating Light |
| Trademark | maya |
| Specification | CE |
| HS Code | 901812100 |
| Type | Operating Light |
| Certification | CE, SGS |
| LCD Display | With LCD Display |
| Anesthesia | Semi Open Suction |
| Medical Devices Reg./Record No. | Gsyjxzz20073211169 |
| Transport Package | Wooden Case |
| Origin | Guangdong |

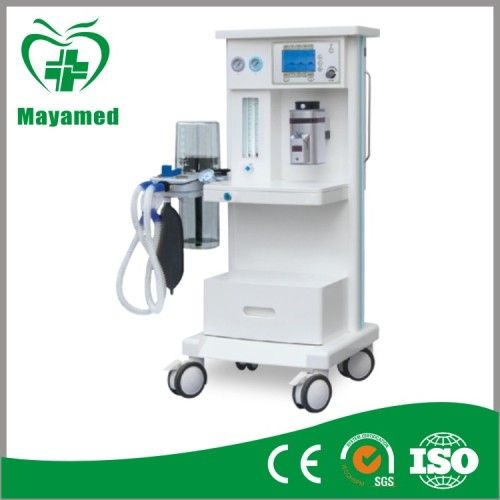

MY-E007 Anesthesia Machine
Main body High-strength engineering plastic rack, light,
Beautiful and corrosion resistant
Scope of application adult, child
Gas source O2: 0.27~0.55MPA
Flow meter O2: 0.1~2L/min 2.5~10L/min
Flow rate of rapid oxygen supply 25~75L/min
Low oxygen pressure alarm There will be sound alarm when the oxygen
Pressure < 0.2MPA2MPA
Vaporizer it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%.
Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer.
Respiratory circuit working mode: All-close, semi-close, semi-open
Releasing pressure: 0.5~7 kPa
Respiratory bellows bellows for adults, bellows for children
Tidal volume range: 0~1500 ml
Ventilator
Display mode High-definition 4.8' LCD screen displayisplay
Ventilation mode IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parameters Tidal volume 50~1500ml
Rate 2~99 bpm
SIMV rate 2~20 bpm
I: E 2: 1~1: 8
Inspiratory trigger pressure -1.0~2.0 kPa
Pressure range 1.0~6.0 kPa
Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, I/E, Peak pressure of airway, inspiratory trigger pressure, pressure - time waveform
Security Alarm System
Airway pressure alarm upper limit setting range 1.0~6.0 kPa
Low limit setting range 0.4~2.0 kPa
Per-minute ventilation volume alarm upper limit setting range 3.0~30L/min
Low limit setting range 1.0~10L/min
Sustained high-pressure alarm it will give alarm when stress have consistently
Been higher than 2.5 kPa
Suffocation alarm it will give sound and light alarm if there is
No tidal volume input in 15s
Power alarm
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
| Item No. | MY-E007 |
| Item Name | MY-E007 Anesthesia Machine |
| Power | AC 220V± 10% 50Hz± 1Hz0Hz± 1Hzmn; 1Hz0Hz± 1Hz |
Main body High-strength engineering plastic rack, light,
Beautiful and corrosion resistant
Scope of application adult, child
Gas source O2: 0.27~0.55MPA
Flow meter O2: 0.1~2L/min 2.5~10L/min
Flow rate of rapid oxygen supply 25~75L/min
Low oxygen pressure alarm There will be sound alarm when the oxygen
Pressure < 0.2MPA2MPA
Vaporizer it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%.
Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer.
Respiratory circuit working mode: All-close, semi-close, semi-open
Releasing pressure: 0.5~7 kPa
Respiratory bellows bellows for adults, bellows for children
Tidal volume range: 0~1500 ml
Ventilator
Display mode High-definition 4.8' LCD screen displayisplay
Ventilation mode IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parameters Tidal volume 50~1500ml
Rate 2~99 bpm
SIMV rate 2~20 bpm
I: E 2: 1~1: 8
Inspiratory trigger pressure -1.0~2.0 kPa
Pressure range 1.0~6.0 kPa
Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, I/E, Peak pressure of airway, inspiratory trigger pressure, pressure - time waveform
Security Alarm System
Airway pressure alarm upper limit setting range 1.0~6.0 kPa
Low limit setting range 0.4~2.0 kPa
Per-minute ventilation volume alarm upper limit setting range 3.0~30L/min
Low limit setting range 1.0~10L/min
Sustained high-pressure alarm it will give alarm when stress have consistently
Been higher than 2.5 kPa
Suffocation alarm it will give sound and light alarm if there is
No tidal volume input in 15s
Power alarm
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
