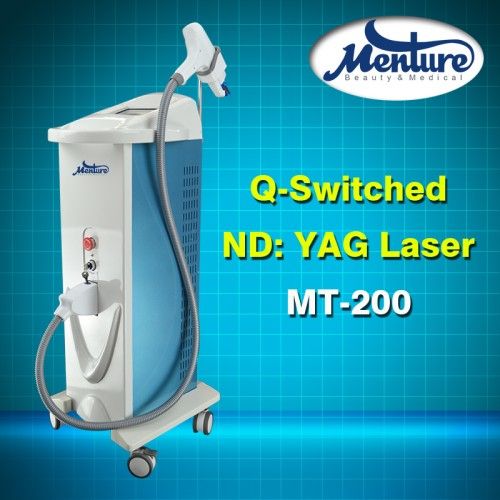

Hot Sale Q-Switched ND YAG Laser Tattoo Removal
Hot Sale Q-switched nd yag laser tattoo removal
Working Principle of laser tattoo removal :
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
The laser pulses in nanosecond range with very high energy. When the laser is absorbed by according pigment, the pigment mass expands quickly and breaks into particles which are eliminated through phagocytes. Whereby the shattered pigment is absorbed by the body and excreted out. Gradually the pigment becomes lighter and lighter till disappearing. Gradually the pigment becomes lighter and lighter till disappearing.
APPLICATIONS:
A. Remove all kinds of tattoo
B.Remove the black &blue pigment on eyebrow, eye line and lip line.
Scour off tattoo, freckle, lentigines, old aged marks, vascular expansion and type of blood vessel lesions etc.
C.No harm to the follicles and normal skin, leaving no scar, only to lustrate pigment.
D.Be in no need of anesthesia and quick recovery. No negative influence.
E. Skin whiten
BACKGROUND OF Q-SWITCH ND YAD LASER:
Q-switching, sometimes known as giant pulse formation, is a technique by which a laser can be made to produce a pulsed output beam. The technique allows the production of light pulses with extremely high (gigawatt) peak power, much higher than would be produced by the same laser if it were operating in a continuous wave(constant output) mode. Compared to modelocking, another technique for pulse generation with lasers, Q-switching leads to much lower pulse repetition rates, much higher pulse energies, and much longer pulse durations. The two techniques are sometimes applied together.
Features:
1). No injury to skin and follicle; no risk of scarring.
2). Remove stubborn pigment, which is hard to be removed by drug or other means.
3). Painless treatment, little side effect.
4). Easy to operate.
5). Popular with patients and easy to get the investment back.
Advantages:
1) Special designed cooling system ensures constantly working;
2) Microcomputer for shots counter;
3) User friendly TFT touch screen;
4) High Safety to normal tissue;
5) Remove pigmentation without side effects or scar;
6) Short treatment period with outstanding effects
Technical specifications
FAQ
About US
Nanjing Menture Development Co., Ltd is specialized in Beauty and Medical Equipment with our own R&D department, Design & Production and Sales &Service team, and we sell our machines to all over the world, and winning best comments for product quality and after service.
Company info
We will try our best to satisfy our customers with the best quality machines and
services. Thanks for your time and welcome your enquiry! If you are interested in our product, please do not hesitate to contact us, we will offer more information, hope we will cooperate in the future!
Working Principle of laser tattoo removal :
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
The laser pulses in nanosecond range with very high energy. When the laser is absorbed by according pigment, the pigment mass expands quickly and breaks into particles which are eliminated through phagocytes. Whereby the shattered pigment is absorbed by the body and excreted out. Gradually the pigment becomes lighter and lighter till disappearing. Gradually the pigment becomes lighter and lighter till disappearing.
APPLICATIONS:
A. Remove all kinds of tattoo
B.Remove the black &blue pigment on eyebrow, eye line and lip line.
Scour off tattoo, freckle, lentigines, old aged marks, vascular expansion and type of blood vessel lesions etc.
C.No harm to the follicles and normal skin, leaving no scar, only to lustrate pigment.
D.Be in no need of anesthesia and quick recovery. No negative influence.
E. Skin whiten
BACKGROUND OF Q-SWITCH ND YAD LASER:
Q-switching, sometimes known as giant pulse formation, is a technique by which a laser can be made to produce a pulsed output beam. The technique allows the production of light pulses with extremely high (gigawatt) peak power, much higher than would be produced by the same laser if it were operating in a continuous wave(constant output) mode. Compared to modelocking, another technique for pulse generation with lasers, Q-switching leads to much lower pulse repetition rates, much higher pulse energies, and much longer pulse durations. The two techniques are sometimes applied together.
Features:
1). No injury to skin and follicle; no risk of scarring.
2). Remove stubborn pigment, which is hard to be removed by drug or other means.
3). Painless treatment, little side effect.
4). Easy to operate.
5). Popular with patients and easy to get the investment back.
Advantages:
1) Special designed cooling system ensures constantly working;
2) Microcomputer for shots counter;
3) User friendly TFT touch screen;
4) High Safety to normal tissue;
5) Remove pigmentation without side effects or scar;
6) Short treatment period with outstanding effects
Technical specifications
| Laser type | Q-Switched ND:YAG Laser |
| Wavelength | 1064nm&532nm |
| Spot size | 3~12mm |
| Cooling system | Air &water cooling circulation |
| Pulse energy | 1064nm(max600mj)&532nm(max 400mj) |
| YAG bar size | 7mm |
| Pulse width | ﹤10ns |
| Frequency | 1-10Hz |
| Operation interface | 8.4' True color TFT touch screen |
| Input power | 800W |
| Power supply | AC230V±10%60/50Hz |
| Dimension | 35cm*42cm*115cm(L*W*H) |
| Weight | 65kgs |
FAQ
| What is Q-Switched ND: YAG Laser? | This is a laser procedure in which a beam of light at a specific wavelength is applied to the skin and is absorbed by colored pigments in the skin, including melanin and tattoo pigments. |
| What is Q-Switched YAG Laser used for? | Q-Switched YAG Laser is used for removal of brown age spots on the face, chest, hands and arms and for tattoo removal. This laser also removes permanent tattooed makeup. |
| Is Q-Switched YAG Laser safe? | Q-Switched YAG Laser is a safe and effective method of treating age spots and tattoos. It is performed by a physician skilled in the use of lasers. What are the possible side effects from Q-Switched YAG Laser treatment? Possible side effects include blistering and crusting after the treatment. |
| Is Q-Switched YAG Laser painful? | For laser treatment of tattoos, the skin fell some heat but not painful which ensures patient comfort during the treatment. |
| Are there any pre-treatment procedures? | Our nurse or physician will consult with you and review the pre-treatment procedures. The skin being lasered must not be tanned. If the patient has a history of cold sores in the area to be treated, a prescription for an anti-viral medication will be given to you by the physician to be started the day before the laser procedure and taken for a few days afterwards. Patients who have had Accutane for acne may not have laser for at least six months (and possibly one year) after stopping Accutane. |
| How is Q-Switched YAG Laser performed? | The patient is placed in a comfortable, relaxed position. The Q-Switched YAG Laser hand piece is applied to the skin to deliver the laser light. Protect glasses are worn to protect the patient's eyes from the light. |
| How long is each treatment? | The length of this treatment varies depending on the size of the area being treated. A few age spots may be lasered in a few minutes; a large tattoo may require 30 minutes or longer. But the large size needs to be treated by steps. |
| How many treatments will I need? | Some light pigment like freckle, age spot and sun mark could be dispelled by once treatment. Most of pigment could be dispelled no more than two times. But to some clinically difficulties like the nevus zygomaticus and the nevus of Ota, it will take 3-6 times to complete. Tattoo removal needs about 2-5 times regarding the difference colors. |
About US
Nanjing Menture Development Co., Ltd is specialized in Beauty and Medical Equipment with our own R&D department, Design & Production and Sales &Service team, and we sell our machines to all over the world, and winning best comments for product quality and after service.
Company info
| Brand name | Menture |
| Place of Origin | Nanjing China (Mainland) |
| Packaging Detail | Aluminum Box |
| Payment method | T/T, WESTERN UNION, MONEY GRAM, ESCROW, PAYPAL |
| Delivery time | Delivery within 3-5 days off season, 5-7 days busy season after payment. |
| Transportation | By express (DHL, EMS, UPS, TNT, Fedex); By air express to air port; By sea |
| Our Services | Two years warranty: if there any problem happens with your machine, we will repair it free of charge Convenient training: user manual and operation video are available; if it is not enough, we can provide the online face to face education OEM/ODM services: your logo, shell, language, interface can specially be designed on your machine |
| Our Main Product: | Diode Laser Hair Removal IPL/SHR/OPT HIFU Face Lift Liposonix HIFU Body Slimming Cryolipolysis Body Slimming Q Swith ND: YAG Laser Hydra facial and Daily Care Fractional CO2 Laser |
We will try our best to satisfy our customers with the best quality machines and
services. Thanks for your time and welcome your enquiry! If you are interested in our product, please do not hesitate to contact us, we will offer more information, hope we will cooperate in the future!
