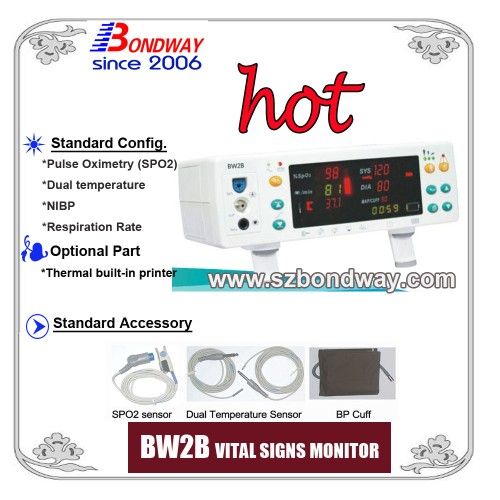

Vital Sign Monitor (BW2B)
Standard Parameter: SPO2, NIBP, Temperature, Respiration Rage
Features
*Bright, Easy-to-Read Large LED Display
*Durable, Compact and Lightweight
*Long-life Internal Rechargeable Battery for Uninterrupted Monitoring
*Accurate and Reliable During Low Perfusion and Montion
*Audible/Visual Three Level Alarms with Alarm Volume Control
*72-hour Data Memory Allowing On-screen Data Replay
*Suitable for Adult, Pediatric and Neonate
*Optional Built-in Thermal Recorder
*Standard RS232 Port for External Printer and Central Monitoring
Technical Specification
*SpO2 Accuracy:
No Motion:
Adults, Pediatrics: 70~100% ± 2%usmn; 2%usmn; 2%
0~69% unspecified
Neonates: 70~100% ± 3%usmn; 3%usmn; 3%
0~69% unspecified
Motion
Adults, Pediatrics: 70~100% ± 3%usmn; 3%usmn; 3%
0~69% unspecified
Neonates: 70~100% ± 4%usmn; 4%usmn; 4%
0~69% unspecified
Low Perfusion:
Adults, Pediatrics: 70~100% ± 3%usmn; 3%usmn; 3%
0~69% unspecified
Neonates: 70~100% ± 4%usmn; 4%usmn; 4%
0~69% unspecified
*Pulse Rate Accuracy
No Motion:
Adults, Pediatrics, Neonates: ± 3%usmn; 3%usmn; 3%
Motion:
Adults, Pediatrics, Neonates: ± 5%usmn; 5%usmn; 5%
Low Perfusion:
Adults, Pediatrics, Neonates: ± 5%usmn; 5%usmn; 5%
*Displays and Indicators
SpO2, Pulse Rate and Pulse Strength Bar
Pulse Search Indicator
Low Perfusion and Motion Warning Indicator
Alarm Silence Indicator
AC Power and Battery Charge Indicator
Low Battery Warning Indicator
Sensor Disconnect and Sensor off Warning Indicator
*Alarm
Audible/Visual Alarms for High/Low SpO2 and PR
Audible/Visual Alarms for Low-Battery
Alarm Limits Adjustable
Alarm Volume Adjustable
Pulse Search Indicator
Alarm Silence Interval: 30, 60, 90and120sec and OFF
Low Perfusion and Motion Warning Indicator
Sensor Disconnect Alarm
Sensor off Alarm
*Non-Invasive Blood Pressure:
Measurement type: Adult, Pediatric, Neonatal
Measurement range:Systolic 40bpm~270mmHg
Diastolic 20bpm~200mmHg
Mean 30bpm~220mmHg
Accuracy: ± 3mmHg or 2%(choice max)ice max)ice max)
Resolution: 1mmHg
Protection: Over pressure
*Performance Measurement Range
SpO2: 0~100%
Pulse Rate: 20bpm~250bpm
*Environment
Operation Temperature: 5~40Celsius temperature
Humidity: ≤ 80% 80% 80%
Altitude: -390~5, 000m(-1, 280~16, 404ft)
Transport/Storage Temperature:
-20~+70Celsius temperature
Humidity: ≤ 95% 95% 95%
*Output
RS-232 Serial Port for Digital Output
Nurse Call Function
*Electrical Instrument
Power Requirements:
100~240VAC, 50/60Hz, 20VA
Fuse Rating: 1.0A
*Battery
Internal Battery: 12V 3.6Ah
Battery Capacity: ≥ 24 hoursoursours
*Physical Characteristics
Dimensions:
264mm(W) x 95mm(H) x 172mm(D)
[10.39in(W) x 3.74in(H) x 6.77in(D)
Net Weight: 2.25kg/5ib
*Compliance
EN60601-1/ GB9706.1
EN60601-1-2, EN60601-2-49
