Folding Electric Power Wheelchair (THR-FP130)
| Model NO. | THR-FP130 |
| Type | Wheelchair |
| Parking Angle | ≤10°e;10°eg;e;10° |
| Power Supply | Electric-Powered |
| Transport Package | Standard Export Carton |
| Origin | Jiangsu, China |
| Folded | Folding |
| Climbing Angle | ≤10°e;10°eg;e;10° |
| Using Site | Skeleton |
| Trademark | THR |
| Specification | CE, TUV, ISO |

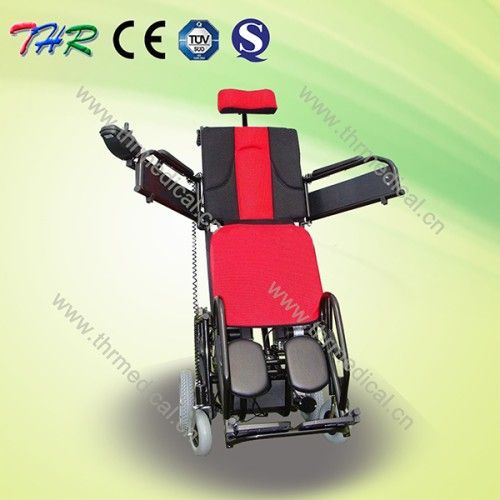

THR-FP130 Folding Standing Power Wheelchair
Specification:
Rear/front wheel: 12.5/8 inch, free inflatable
Max speed: ≤6 km/hkm/hkm/h
Mileage: ≤30km30km30km
Min radius of gyration: 620mm
Climbing angle: ≤10°;10°deg;;10°
Parking angle: ≤10°;10°deg;;10°
Standing angle: 75°°deg;°
Brake distance: ≤1.5m1.5m1.5m
Obstacle height: ≤40mm40mm40mm
Standing / lying time: 15s
Groove width: ≤100mm00mm00mm
Work environment: -20C°~ 45C° 45C°deg; 45C°
Battery: 4×20Ah ,24VAh ,24VAh ,24V
Motor power: 2×250W,DC24VW,DC24VW,DC24V
Charge input/output: AC220V50HZ ±15/DC24V15/DC24V15/DC24V
Power consumption: ≤2Kwh/100km00km00km
Max load: ≤120kg20kg20kg
Features:
Dynamic part: This is the core part of THR-FP130 which include two drive motors,two electric putters,two backward driving wheels,two former wheels,walking controller,putter controller,manipulator,battery,anti-backwards wheels,anti-forwards wheels.
Skeleton part: This part contain all the components and parts,including chassis,seat frame.leg frame,back frame and the head frame.
Seat and cushion parts: They are the touch parts with soft cushion,soft back cushions,headrests,knee,waist,arm,leg splint,foot pedals.
Human part: Mainly contains a table which is very user-friendly.
