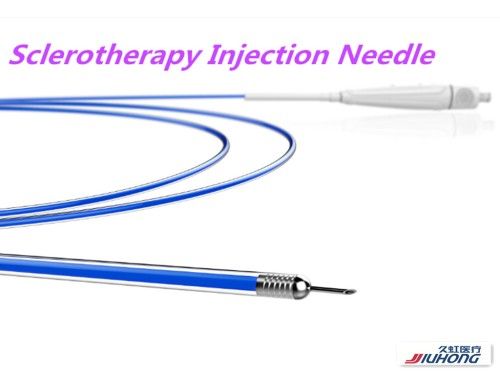

22g 5mm Injection Needle for Endoscopic Injection
| Model NO. | JHY-IN |
| Material | Plastic |
| Ethylene Oxide Sterilization | Ethylene Oxide Sterilization |
| Group | Adult |
| Color | Blue |
| Trademark | JIUHONG |
| Origin | China |
| Type | Endoscopic Device |
| Certification | CE, SGS, ISO13485, Cmdcas |
| Quality Guarantee Period | Two Years |
| Logo Printing | With Logo Printing |
| Handle | Single Hand Operation |
| Specification | CE ISO CMDCAS |
| HS Code | 90189090 |
1.2 Intended use
The product is used in combination with endoscope for the injection treatment of esophageal and gastric varices, and the injection of submucosa in digestive tract.
1.3 Product classification
In terms of Provision 6, Annex IX in Medical Device Directive (MDD), Injection Needle is an EO sterilized and invasive device, the classification is Class IIa.
1.4 Types
According to the description of product standard, Injection Needle is classified into several models by diameter.
1.5 Product features
Injection Needle has the characteristics of high strength puncture and easy operation.
The product is used in combination with endoscope for the injection treatment of esophageal and gastric varices, and the injection of submucosa in digestive tract.
1.3 Product classification
In terms of Provision 6, Annex IX in Medical Device Directive (MDD), Injection Needle is an EO sterilized and invasive device, the classification is Class IIa.
1.4 Types
According to the description of product standard, Injection Needle is classified into several models by diameter.
1.5 Product features
Injection Needle has the characteristics of high strength puncture and easy operation.
| Model | O.D(mm) | Working Length(mm) | G×mmtimes;mmimes;mm Needle O.D (G) & Length(mm)h(mm)h(mm) | Needle Type | Endoscope Channel(mm) |
| JHY-IN-18-120-2505-A | 1.8 | 1200 | 25×5times;5times;5 | A | ≥2.0;2.0;2.0 |
| JHY-IN-18-120-2205-A | 1.8 | 1200 | 22×5times;5times;5 | A | ≥2.0;2.0;2.0 |
| JHY-IN-18-180-2505-A | 1.8 | 1800 | 25×5times;5times;5 | A | ≥2.0;2.0;2.0 |
| JHY-IN-18-180-2305-A | 1.8 | 1800 | 23×5times;5times;5 | A | ≥2.0;2.0;2.0 |
| JHY-IN-18-180-2205-A | 1.8 | 1800 | 22×5times;5times;5 | A | ≥2.0;2.0;2.0 |
| JHY-IN-18-260-2205-A | 1.8 | 2600 | 22×5times;5times;5 | A | ≥2.0;2.0;2.0 |
| JHY-IN-23-180-2304-A | 2.3 | 1800 | 23×4times;4times;4 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-180-2005-A | 2.3 | 1800 | 20×5times;5times;5 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-180-2205-A | 2.3 | 1800 | 22×5times;5times;5 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-230-2305-A | 2.3 | 2300 | 23×5times;5times;5 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-230-2304-A | 2.3 | 2300 | 23×4times;4times;4 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-230-2005-A | 2.3 | 2300 | 20×5times;5times;5 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-230-2205-A | 2.3 | 2300 | 22×5times;5times;5 | A | ≥2.8;2.8;2.8 |
| JHY-IN-23-260-2304-A | 2.3 | 2600 | 23×4times;4times;4 | A | ≥2.8;2.8;2.8 |
