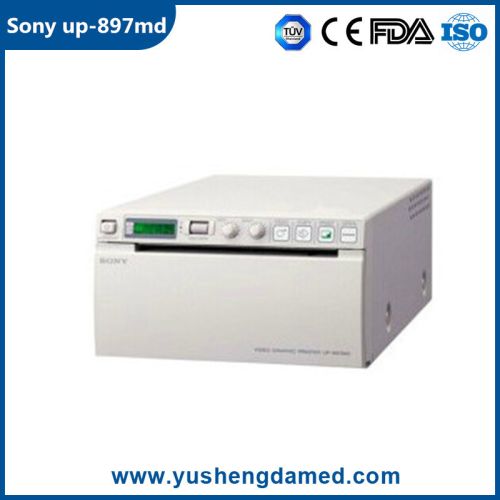

for All Ultrasound Scanner Sony up-897MD Video Thermal Printer
| Model NO. | Sony up-897md |
| Type | Video Thermal Printer |
| Supply Paper Mode | Automatic and Manual Integration |
| Network Function | Wireless Network |
| Consumable Type | Split Cartridge |
| Connect to | All Ultrasound Scanner |
| Usage. | Photo Printer, Document Printer |
| Printing Method | Direct Thermal Printing |
| Resolution | 325 Dpi |
| N.W | 2.6kg |
| Trademark | Sony |
| Specification | CE |
| HS Code | 9018121000 |
| Usage | Video Thermal Printer |
| Automatic Two-sided Printing | Support Automatic Two-sided Printing |
| Interface Type | USB |
| Style | Black and White |
| Max. Paper Size | A4 |
| Model Number | Sony up-897md |
| Interface Type. | USB |
| Gradations | True 256 Gray Balance |
| Printed Picture Size | 4'(W) X 12 5/8' (H5/8" (Hot; (H |
| Memory | 10 Frames |
| Transport Package | in Carton Packing |
| Origin | Japan |
Connect to: all model of ultrasound scanners
Descriptions:
SONY UP-897MD black and white ultrasound scanner video image printer, is Sony's new similar products in the smallest, lightest, fastest speed thermal printer.
Applications:
used to print ultrasound scanner image and reports.
Features:
Print method: Direct thermal printing
Print density: 1280 dot-matrix
Color and gradation: 256 levels of gray, 325dpi
Print speed: High-speed printing 2 seconds, normal print 3.3 seconds
Image Size: Minimum 94*71mm, the largest 127*96mm
Print Interface: VIDEO
Ideal for ultrasound printing
Smaller and lighter by 12% compared to the 895 series printer
User friendly controls on front panel
Fast print speed - approximately 2.0 seconds
Space Saving Design
Worldwide Power Supply
Technical Specifications
| Printing Method: | Direct Thermal Printing |
| Thermal Head: | Thin Film Thermal Head (1280 dots) |
| Gradations: | True 256 gray balance |
| Resolution: | 325 DPI |
| Printed Picture Size: | 4'(W) x 12 5/8' (H)8" (H)t; (H) |
| Effective Pixels: | EIA 1280 dot x 508 lines CCIR: 1280 dot x 608 lines |
| Memory: | 10 Frames |
| Input/Output : | Video In: BNC, CCIR or EIA composite video signal, 1.0 Vp-p, 75 ohms/ high impedance selectable Video Out: BNC, Loop-through or E to E selectable |
| Print Speed: | Approximately 2.0 seconds (High Speed Mode) |
| Remote Terminal: | Stereo Mini-jack |
| Power Requirements: | 100V to 240V, 50/60 Hz, 1.5A to 0.8A (Worldwide) |
| Dimensions (WHD): | 6 1/8 x 3 1/2 x 9 1/2 inches; 154mm x 88mm x 240mm |
| Weight: | Approximately 5 lbs. 12oz. 2.6kg |
| Safety Standards: | UL60950-1 Listed CSA C22.2 No. 60950-1 UL60601-1 Listed CSA No. 60601-1 |
| Supplied Accessories: | AC Power Cord Operation Manual (CD ROM) Thermal Head Cleaning Sheet BNC Video Connecting Cable UPP-110HG Media (1 Roll) |
| Media (Not Included): | UPP-110HG High Gloss Paper UPP-110HD High Density Paper UPP-110S/5 Standard Paper |
| Optional Accessories: | FS-20 Wired foot switch RM-91 Remote thumb button |
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
