Model Name:YSD-P04

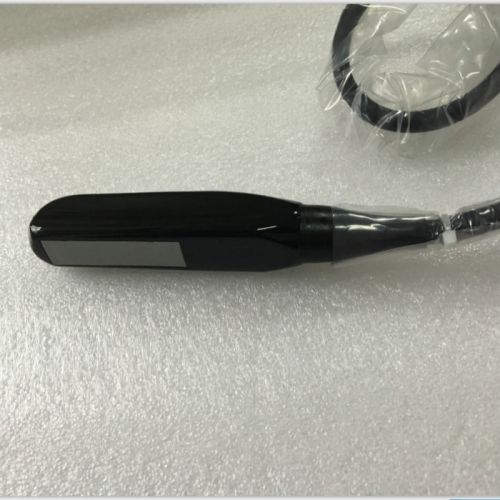

Name:Linear rectum probe
Use range:for veterinary
Connected in:Ultrasound scanner
System display
Imaging mode: B, BB, BM,M
Annotation:
Hospital name, patient ID, name and gender, date time, probe type, scanning depth,
Gain, frame averaging, line averaging, gamma correction, contrast, frame frequency,
Application mode(vet), probe direction identification, focus location, TGC curve,
Depth and speed scale, cine loop frames, measurement and results, operation keys.
Technical parameters
TGC
Gross gain 25 levels (0-100db, step=4)
Contrast 25 levels (0-100, step=4)
Depth: C3 23 levels (70-225mm, step=7mm)
L7: 23 levels (35-112mm, step=3 or 4mm)
M3: 23 levels (70-225mm, step=7mm)
Focus C3: 15 levels (25-150mm, step=5mm)
Cine loop frame: auto 512
Probe conversion: Auto identify
Video save, image save
Image reversal(Invert L/R)
New patient(Exam): Patient ID, name, age, etc
Patient info. (Patview): Image, cine loop
Zoom
Measurement:
Distance, area, perimeter, time, speed, heart rate
Obstetrics: BPD, FL, CRL, HC, AC, GA, FW
VET(Horse, Cattle, Sheep, Dog, Cat)OB measurement
