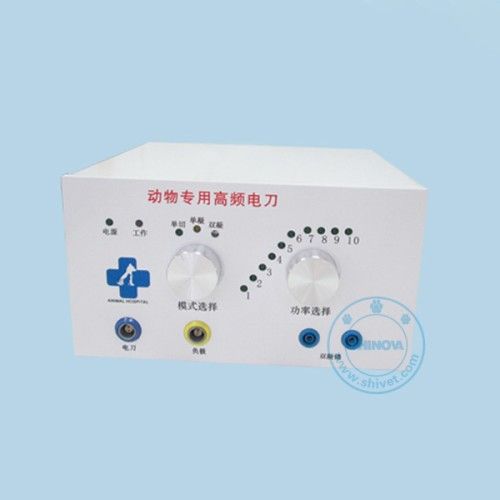

Veterinary High Frequency Electrosurgical Unit(EU-300S)
Model: EU-300S
Veterinary electrosurgical equipment is electrosurgical instrument instead of mechanical scalpel, cutting tissue.
It heat to the tissue when high frequency, high voltage current discharge generated through the effective electrode tip in contact with the body tissue.
Realizing body tissue vaporization separation and solidification, to get the purpose of cutting and hemostasis. Under cutting mode, the current produce heat through the tissue cells, the intracellular water is evaporated by heating to cause the cell to rupture; Under coagulation mode,
The cells of the tissue surface is dehydrated by heating, Until the lesion part bleeding, dry, atrophy, separation.
Product feature& function:ction:tion:
Veterinary electrosurgical unit is surgical instruments for Animal Hospital operating room, It can be finely adjusted cutting and electrocoagulation parameters, and it's repeatable. Various designs of security systems ensure the safety of the animals and physicians. This instrument is mainly applied to surgery, such as animal skin, chest, facial features, maxillofacial surgery.
The instrument have three operation modes: Pure cut, monopole coagulation, Bipolar coagulation, the function is full; Be stable and good power output, and sufficient power supply. The function of 10 segments power adjustment is very easy
Work Environment:
1. Environment Temp: -10degree, - 40degree; Relative humidity: Below 80%;
2. Working power: AC 220V, 22V 50Hz1Hz
3. Atmospheric pressure: 86kPa-106kPa
Main Performance index:
1. Common parameter
Meas: 24cm*23cm*13cm (length*Width *Height)
2. Electric parameter
Input voltage: 220 V(22V)
Input currency: 0.9A
Frequency range: 50Hz(1Hz)
Operating frequency: 1.5-1.7MHz
Output power: Unipolar cutting: 0~100W
Unipolar coagulation: 0~100W
Bipolar coagulation: 0~50W
