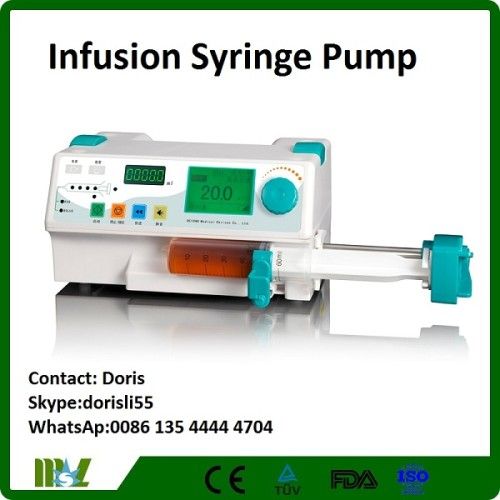

Medical Single Channel Syringe Infusion Pump (MSLIS01)
Syringe Pump with drug library MSLIS01
1. Drug Library.
2. Separate operation between the two single channels.
3. Three working modes: rate mode, time-volume mode, dosage-weight mode.
4. Automatically calibration and compatible with all standard syringes of 10ml~50ml..
5. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
6. Large LCD screen displays working status.
7. KVO and Bolus functions.
8. Save the last infusion rate automatically when there is unpredicatable switch off.
9. Transfer the message between the Nurse-call System and the pumps.
Technical parameters of MSLIS01 syringe pump:
1. Drug Library.
2. Separate operation between the two single channels.
3. Three working modes: rate mode, time-volume mode, dosage-weight mode.
4. Automatically calibration and compatible with all standard syringes of 10ml~50ml..
5. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
6. Large LCD screen displays working status.
7. KVO and Bolus functions.
8. Save the last infusion rate automatically when there is unpredicatable switch off.
9. Transfer the message between the Nurse-call System and the pumps.
Technical parameters of MSLIS01 syringe pump:
| Special function | With drug library |
| Rate: | 50/60ml Syringe: 0.1ml/h~999.9ml/h (0.1ml/h step) 1,000ml/h~1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h~900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h~600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h~300.0ml/h (0.1ml/h step) 5ml Syringe: 0.1ml/h~100.0ml/h (0.1ml/h step) |
| Flow Rate Accuracy: | Within ±3% (after correct calibration) |
| Mechanical precision: | Within ±2% |
| Bolus Rate: | 50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h 5 ml Syringe: 100ml/h |
| Purge Rate: | 50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h 5 ml Syringe: 100ml/h |
| Volume Limit: | 0.1ml~9999.9ml |
| Total Injection Volume: | 0.1ml~9999.9ml (0.1ml step) |
| Occlusion: | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
| Alarms: | Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc. |
| Power Source: | AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup |
| KVO rate: | 1ml/h |
| Fuse: | F1AL/250/60V, 2pcs inside |
| Power Consumption: | 30VA |
| IP Classification: | IPX4 |
| Equipment Classification: | Class II, internal power supply, Type CF |
| Operating Condition: | Ambient temperature: +5ºC~+40ºC; |
| Relative humidity: | 20~90% |
| Transport & Storage Condition: | Ambient temperature: -30ºC~+55ºC |
| Relative humidity: | ≤95% |
| Dimension: | 280mm (L) × 210mm (W) × 130mm (H) |
| Weight: | 2.2kg (net weight) |
