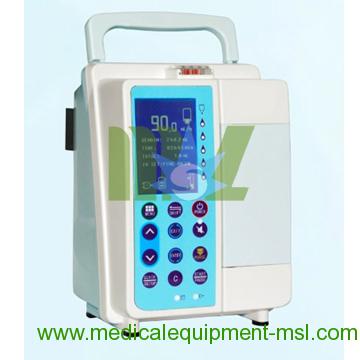

Hot-selling Portable Infusion Pump (MSLIS08)
Infusion Pump
Infusion Controller
Iv Fluid Controller
Introduction:
With CE marked and ISO 13485 verification. |
Large LCD screen, all data synchronized displayed easy to operate. |
Detect the motor running direction real-time, anti-reverse rotation, more safety. |
Integrated ultra-sound bubble detector, accurate and reliable. |
High quality mini-pressure block detector, accurate and reliable. |
Auto-controlled multiple KVO function, prevent IV block effectively. |
Infusion rate can be displayed by 'mL/h or 'drop/min', flexible. |
Features
1. Large LCD screen, all data synchronized displayed easy to operate. |
2. Detect the motor running direction real-time, anti-reverse rotation, more safety. |
3. Integrated ultra-sound bubble detector, accurate and reliable. |
4. High quality mini-pressure block detector, accurate and reliable. |
5. Auto-controlled multiple KVO function, prevent IV block effectively. |
6. Infusion rate can be displayed by 'mL/h or 'drop/min', flexible. |
7. Solid appearance design, easy to clean and sterilize. |
8. Packing Dimension: 230mm*210mm*260mm(L*W*H) |
9. Net Weight: 2.0kg |
10. Flow Rate: 1-1200ml/h (Volumetric Mode) |
11. Volume Limit: 0.1ml~9999.9m |
After-sales service:
Software free upgrades forever, and three years free warranty, five-year warranty;
Timely maintenance, preventive maintenance, free training services on a regular basis;
Pays a return visit from custom regularly, and free testing machine.
Net Weight | 2.0Kg |
Dimension | 195mm×148mm×210mm(L×W×H) |
Packing Dimension | 230mm×210mm×260mm(L×W×H) |
Flow Rate | 1-1200ml/h (Volumetric Mode) |
Infusion Accuracy | ±5 % (Volumetric Mode) |
Volume Limit | 0.1-9999.9ml |
Infused Display | 0-9999.9ml |
Infusion Increment | 0.1ml |
KVO Rate | 1~5ml/h (Volumetric Mode) |
Alarm Function | Infusion completion, low voltage, bubbles in line, occlusion, installation error of infusion pipe, door open, motor failure. |
Occlusion Value | 40KPa~140KPa (400mmHg900mmHg, adjustable) |
Air Detection | 5 levels of sensitivity are available |
Input Power | AC 100-240V 50/60Hz |
Battery Recharge | Rechargeable Ni-Hydrogen battery, DC12V, 2000mAh, work for 7 hours after being fully recharged (at 90ml/h) |
Power Source | ≤25VA |
Classification | Class I, internal power supply, Type CF (not AP type or APG type), IPX4 |
Work Condition | Ambient Temperature: +5centigrade temperature-+40centigrade temperature Relative Humidity: 20%-90% Atmospheric Pressure: 70-106KPa |
Display | Color LCD with high backlight, size 45mm×67mm (3.2inchs screen) |
