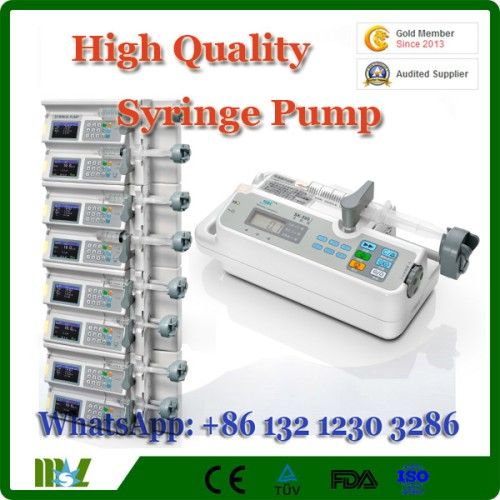

Medical Hospital Basic 50ml Syringe Pump

1-520 USD

For more types or more information, plz do not hesitate to contact me...

Penny Zeng

Classification Class II, Type CF

Product Feature
1. Compatible with 10ml/20ml/50ml standard syringes as open system
2. Micro flow rate until 0.1ml/h with increment of 0.1ml to satisfy the requirement for Neonatal/Pediatric
3. Anti-bolus system to reduce significantly bolus after occlusion sudden release
4. Reminder alarm in case of forgetting to start the operation
5. Alarm volume adjustable on 3 levels
6. Wireless data transmission with infusion supervision system

Product Technical Parameter

Operating Mode	Flow Rate Mode
Syringe Type	10, 20, 50 ml
Preset Volume	0.0-999.9ml
Accumulated Injection Volume	0.1 - 999.9 ml
Flow Rate Range	10 ml syringe: 0.1 ml/h - 100 ml/h (increment 0.1 ml/h)
	20 ml syringe: 0.1 ml/h - 200 ml/h (increment 0.1 ml/h)
	50 ml syringe: 0.1 ml/h - 500 ml/h (increment 0.1 ml/h)
Accuracy	± 3%
Bolus Rate	10 ml syringe: 100 ml/h
	20 ml syringe: 200 ml/h
	50 ml syringe : 500 ml/h
KVO Rate	0.1-5.0ml/h adjustable, 1ml/h as default

Display

Screen	2.0 inch B/W LCD
Information	Flow Rate, Accumulated injection volume, Preset volume, Syringe size, Battery capacity, Bed No., AC power indicator, Battery charge indicator, etc.

Alarm Type
1. Finish, Near, Syringe Empty, Syringe Disengaged, Occlusion, System Error, Battery Empty, Low Battery, Reminder to operate, No AC Power.
2. Occlusion Alarm Pressure Range 3 levels: 70kPa, 100kPa, 130kPa (±30kPa), Level Low as default.

Environment


Temperature 5 - 40 ºC for operating; -20 - 50 ºC for storage
Air Pressure 86 - 106 kPa for operating; 50 - 106 kPa for storage
Humidity 20 % - 80 % for operating; 10 % - 95 % for storage
