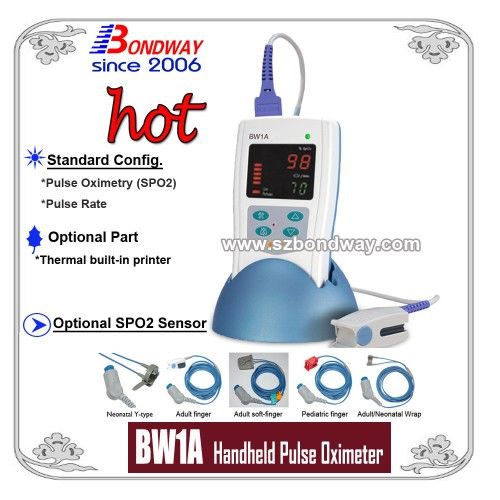

BW1A Handheld Pulse Oximeter
Model No.: BW1A
Product Name: Handheld Pulse Oximeter
Features
*With Alarm Function
*Bright, Easy-to-Read Large LED Display
*Durable, Compact and Lightweight
*Accurate, Reliable Readings During Low Perfusion and Motion
*Audible/Visual Alarms with Adjustable Alarm Limits
*Spot-Check and Continuous Monitoring
*Suitable for Adult, Pediatric and Neonate
Technical Specs:
*SpO2
Measurement Range: 0-100%
Accuracy: ± 2% during 70%-100% 0%-69% unspecifiedspecifiedpecified
*Pulse Rate
Measurement range: 30 - 250 BPM
Accuracy: ± 1 BPM or 2% take the bigger oneigger onegger one
*Visual Displays and Indicators
Sp02 Display: Red LED, variable brightness
Pulse Rate Display: Green LED, Variable brightness
Pulse intensity: Red LED 8 Bars
Power Indicator Light: Green
Low Power Voltage: Red and Blink
Low Perfusion Indicator: Red
*Audio Indicators
Sensor off (Every 30 seconds)
Pulse beep
Key-Pressing
Low Battery
*Dimensions
130mm(H)*69mm(W)*22mm(D)
Weight(with batteries/without batteries): 195g/100g
*Environmental Specifications
Operation Temperature: 0-50º C Humidity: ≤ 95% ≤ 95%95% ≤ 95%
Altitude: -390~5, 000m(-1, 280~16, 404ft)
Transport/Storage Temperature: -40º +70º C+70º Cdm; C+70º C
Humidity: ≤ 95% 95% 95%
*Power requirements
Four standard 'AA' size Batteriese Batteries
Batteries Capacity: 17 hours
*Alarm
Audible and Visual Alarms for High/Low
SpO2 and Pulse Rate
Alarm Limits Adjustable
Alarm Silence Interval: 30, 60, 90and120sec
Low Perfusion Warning Indicator
Sensor Disconnect Alarm
Low-battery Warning Indicator
*Compliance
SpO2: ISO9919: 2005
Safety Standards: En60601-1: 1990+A1: 1993+A2: 1995+A13: 1996 Type BF-Applied
Alarm: IEC60601-1-1-8: 2005
EMC: EN60601-1-2: 2001, Group1 Class A
Environment: WEEE(2002/96/EC)
