Full Digital Vet Ultrasound Scanner
| Model NO. | THR-LT003 |
| Type | Ultrasound Scanner |
| Weight | 1kg |
| Width | 17cm |
| Properties | Diagnosis & Injectionectionction |
| Transducer Frequency | 2.5~8.5 MHz |
| Battery | Yes |
| Transport Package | Standard Wooden Case |
| Origin | China |
| Classification | Imaging Diagnostic Equipment |
| Full Digital Vet Ultrasound Scanner | Full Digital Vet Ultrasound Scanner |
| Thickness | 2cm |
| Length | 25cm |
| Imaging Model | B, B/B, B/M, M, 4b |
| USB Ports | 2 |
| Trademark | THR |
| Specification | CE, ISO |

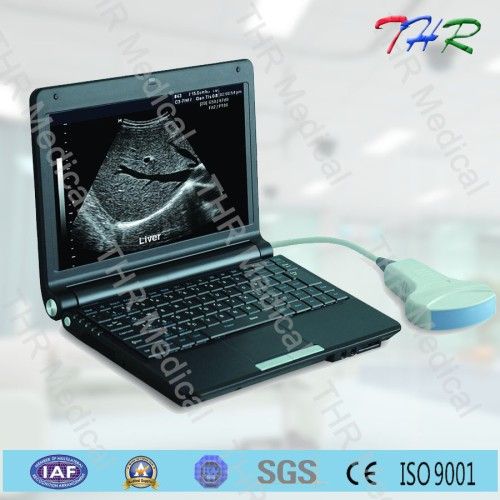

THR-LT003 Full digital Vet Ultrasound Scanner
-Battery
-2 USB ports
-SD card
-192-frame cineloop
-Battery
-2 USB ports
-SD card
-192-frame cineloop
| Advantages | |
| -Small volume for easy carry | |
| -U Disk for upgrade | |
| -Dismountable battery | |
| -Connect with Jet printer, Laser printer to print directly | |
| -Other perfprmance is as the same as the laptop computer,sunch as power save mode,touch pad and so on | |
| Features | |
| -Battery | |
| -192-frame cineloop | |
| -2 USB ports | |
| -SD card | |
| -General software,Obstetrics software and Cardiac software | |
| Software | |
| General measurement: | distance, circumference, volume, angle, heart rate and etc. |
| Obstetrics measurement software: | BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus' weight, pregnancy week, fetal physiological rating according to the previous measurements. |
| Cardiac measurement software. The measurement result could be shown automatically. | |
| Specifications | |
| Weight | 1kg |
| Thickness | 2cm |
| Width | 17cm |
| Length | 25cm |
| Scanning mode | electronic linear array, electronic convex array |
| Imaging model | B, B/B, B/M, M, 4B |
| Gray scale | 256 levels, four selectable gamma curve |
| Transducer frequency | 2.5~8.5 MHz |
| Magnification | ×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5;1.1,×1.2,×1.3, ×1.4,×1.53, ×1.4,×1.5;1.1,×1.2,×1.3, ×1.4,×1.5 |
| Permanent storage | 1024 |
| Cine loop | 192, manual and automatic |
| Sound Power | 8 grades from 0-7 |
| Dynamic Range | Adjustable from 30-75 |
| USB Ports | 2 |
| IP set | 8 |
| Pseudo color | 5 kinds |
| Image Processing | Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll |
| Measurement | Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac |
| Focus | Number and location o, f the focus can be adjusted |
| Puncture | Puncture guide line |
| TGC | Adjustable, Near field, Middle field and Far field are adjustable from 39-99 |
| Body Marks | 35 |
| IP set | Hospital's name, Date, Time, Formula of Fetus' weight and Pseudo color |
| Image store format | BMP, DICOM |
| Formula of Fetus' weight | OSAKA, TOKYO1, TOKYO2, MERZ |
| Image | Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture |
| Voltage | AC85V-265V |
