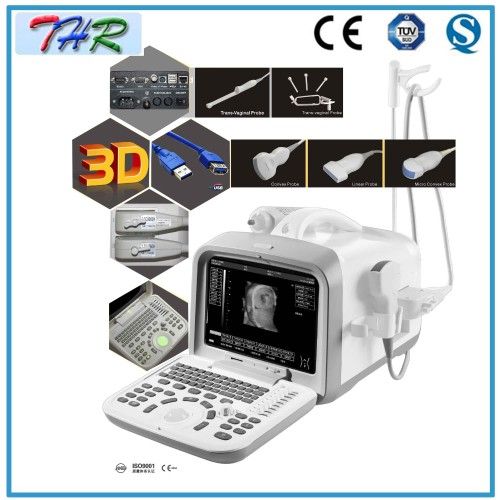

Portable Ultrasound Diagnostic Equipment(THR-US6602)
Clinical Application and Main Specification
Windows XP Embedded operation system
Application: Abdomen, gynecology, obstetrics, urological, small parts and blood vessel.
Automatic measurement software of OB/GYN, urology, pediatrics, cardiology and small parts.
Select different diagnostic measurement formula for different race
Scanning model: Convex, Linear, and Micro-convex
Imaging Mode: B, 2B, B/M, M, 4B
8 segment TGC adjustment
Doctor could get the perfect image by One-key Optimization setting
Image stepless zoom
2000 static images and 50 dynamic images storage
USB flash disk software upgrade supported, storage and read image by USB flash disk
Diagnostic report generated automatically, and printed out by A4 paper from laser printer.
Puncture Guide ( Optional )
Transducer connector: 2 (Standard) probe identify and switch automatically
10'' B/W SVGA monitor
Port: PAL-D, VGA, RS-232, USB2.0, DICOM3.0
Standard Configuration:
R60/3.5MHz Convex probe
Optional:
L6.5M/R10 Transvaginal Convex probe
L7.5M/L40 Linear probe
Video Printer/ Inkjet printer/ Laser printer
