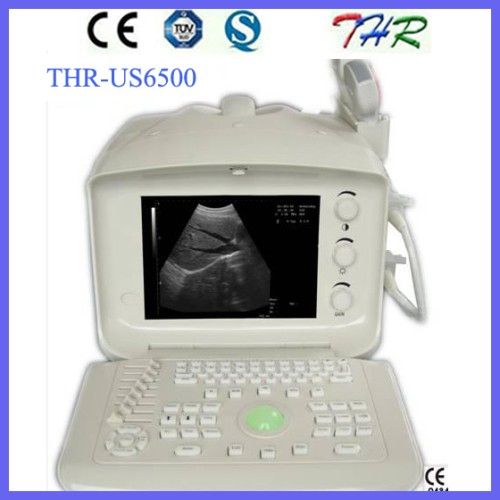

Economic Digital Portable Ultrasound Scanner(THR-US6500)
Main Features:
Powerful measurement & calculation software packagesckageskages
8-Segment TGC adjustment
10 inch VGA monitor
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images
Back-lit keyboard
2 probe connectors
Probe automatic identification
Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal
Display modes: B, B+B, B+M, M, 4B
Scanning depth: 240mm
Gray scales: 256
Body marks: 44
Image conversion: Up/down, left/right, black/white
Function of puncture guide
Per: 4-stage per function
Printer function: Can connect laser printer and Video printer directly
Comment: Date, Name, Sex, Age, Hospital, Annotation
Zooming: *0.8, *1.0, *1.2, *1.5, *2.0
Port: USB 2.0, VGA, Video connector
Wide application: Abdomen, OB/GYN, urology, cardiology etc
USB Function of image store: More than Sixteen thousand images
Power supply: AC 110V-240V, 50Hz/60Hz
Probe connector: 2
Standard configuration:
Main unit
60R/3.5MHz Convex array probe
USB 2.0, VGA port
Video connector
Options:
L40/7.5MHz Linear array probe
20R/5.0MHz Micro-Convex array probe
13R/6.5MHz Trans-vaginal array probe
Printer
