Endoscopic Dilation Balloon Catheter for Esophagus
| Model NO. | JHY-BD |
| Material | Plastic |
| Ethylene Oxide Sterilization | Without Ethylene Oxide Sterilization |
| Group | Adult |
| Trademark | Jiuhongmed |
| Origin | Jiangsu Changzhou |
| Type | Endoscopic Device |
| Certification | CE, SGS, ISO13485 |
| Quality Guarantee Period | Two Years |
| Logo Printing | With Logo Printing |
| Specification | ISO13485, ISO9001, CE0197, CMDCAS |
| HS Code | 90189090 |

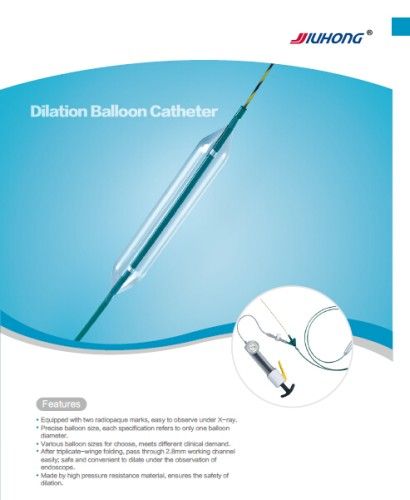

Name: Dilation Balloon
Characteristics:
With high pressure resistance materials to ensure the safety of dilatation.
With precise diameter by one specification referring to only one diameter.
With triplicate-wing folding, it can easily pass through endoscope channel with 2.8mm; it is safe and convenient to dilate under the
observation of endoscope.
The balloon portion has the radiopaque marker, which can be seen clearly under X-Ray.
Equipped guide wire : 0.035.
Specifications:
Dilation balloon for esophagus, pylorus and intestinal tract:
Dilation balloon for cardia:
Dilation balloon for biliary tract:
Other Balloons:
Characteristics:
With high pressure resistance materials to ensure the safety of dilatation.
With precise diameter by one specification referring to only one diameter.
With triplicate-wing folding, it can easily pass through endoscope channel with 2.8mm; it is safe and convenient to dilate under the
observation of endoscope.
The balloon portion has the radiopaque marker, which can be seen clearly under X-Ray.
Equipped guide wire : 0.035.
Specifications:
Dilation balloon for esophagus, pylorus and intestinal tract:
| Model | O.D. (mm) | Balloon Length (mm) | Catheter Length (mm) | Characteristics |
| JHY-BD-06-40-180 | 06 | 40 | 1800 | Endoscope channel ≥2.8mm;8mm;8mm; Guide wire diameter: 0.035'"" |
| JHY-BD-08-40-180 | 08 | 40 | 1800 | |
| JHY-BD-10-40-180 | 10 | 40 | 1800 | |
| JHY-BD-12-60-180 | 12 | 60 | 1800 | |
| JHY-BD-14-60-180 | 14 | 60 | 1800 | |
| JHY-BD-16-80-180 | 16 | 80 | 1800 | |
| JHY-BD-18-80-180 | 18 | 80 | 1800 | |
| JHY-BD-18-80-230 | 18 | 80 | 2300 | |
| JHY-BD-20-60-180 | 20 | 60 | 1800 | Endoscope channel≥ 2.8mm;8mm;8mm; Not suitable for guide wire |
| JHY-BD-20-60-180 | 20 | 80 | 1800 | |
| JHY-BD-20-60-230 | 20 | 60 | 2300 | Endoscope channel≥ 2.8mm;8mm;8mm; Guide wire diameter: 0.035'"" |
| JHY-BD-20-80-230 | 20 | 80 | 2300 |
Dilation balloon for cardia:
| Model | O.D. (mm) | Balloon Length (mm) | Catheter Length (mm) | Characteristics |
| JHY-BD-25-80-90 | 25 | 80 | 900 | Not suitable for endoscope use; guide wire diameter 0.035' can past throughhrough |
| JHY-BD-30-80-90 | 30 | 80 | 900 | |
| JHY-BD-35-80-90 | 35 | 80 | 900 |
| Model | O.D. (mm) | Balloon Length (mm) | Catheter Length (mm) | Characteristics |
| JHY-BD-06-40-200 | 06 | 40 | 2000 | Endoscope channel≥ 2.8mm;8mm;8mm; Guide wire diameter: 0.035'"" |
| JHY-BD-08-40-200 | 08 | 40 | 2000 | |
| JHY-BD-10-40-200 | 10 | 40 | 2000 | |
| JHY-BD-12-60-200 | 12 | 60 | 2000 | |
| JHY-BD-14-60-200 | 14 | 60 | 2000 |
| Model | O.D. (mm) | Balloon Length (mm) | Catheter Length (mm) | Characteristics |
| JHY-BD-06-40-110 | 06 | 40 | 1100 | Endoscope channel≥2.8mm;8mm;8mm; Guide wire diameter: 0.035'"" |
| JHY-BD-08-40-110 | 08 | 40 | 1100 | |
| JHY-BD-10-40-110 | 10 | 40 | 1100 | |
| JHY-BD-12-60-110 | 12 | 60 | 1100 | |
| JHY-BD-14-60-110 | 14 | 60 | 1100 | |
| JHY-BD-16-80-110 | 16 | 80 | 1100 | |
| JHY-BD-18-80-110 | 18 | 80 | 1100 |
