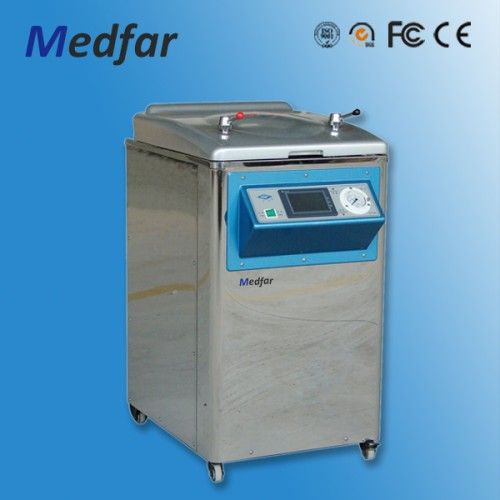

Autoclaves Vertical Steam Sterilizer (LCD touch screen intelligent control type)
Model Number:MFJ-YM50CM,YM75CM |
Capability Feature:
Mirror stainless steel housing and stainless steel sterilization chamber, the cover and the basket, durable; LCD touch screen and full automatic control microcomputer sterilization process; Confirmation interactive methods to achieve the program settings to prevent misuse; LCD screen readily available inside the sterilization process and status; Three preset (materials, equipment, medium) conventional standard sterilization procedures to choose from, while a custom space for the special-purpose self-setting; With the 'inner loop' function, the sterilization process without steam released into the room; High precision temperature control, temperature drift of less than ± 0.3 ºC, cavity temperature difference is less than 1 ºC; Radially self-expanding silicone rubber seals, sealing effect, long life; Tilt the control panel design, easy to observe operations; Over-temperature (exceeds the set temperature 2 ºC) alarm to stop heating; Overpressure (≥ 0.17MPa) steam safety valve discharge protection function; Sterilizer chamber pressure, safety measures can lid; Place the lid is not closed, unheated; and with LED indication; Pressure inside the security status with LED indication; Ultra-range settings, the device will not be recognized, and a corresponding warning; After the sterilization process to provide this basic data; You can choose to configure data printing capabilities, print this sterilization basic data; Casters with brakes, shift light, easy positioning Particularly suitable for use in a laboratory environment needs.e in a laboratory environment needs.oratory environment needs. | |
Main Technical Data:
Model | Electric Supply | (KW)Power | Printing function | Cooling pressure(Mpa) | )Operating temperature | Soaking time hypothesis scope | In Instrument tempreture difference | Temperature quantity | Volume | Use me dium | Net basket size (cm)/Integer | (cm)Product size | (cm)Product size(Wooden) |
| YM30B | AC 220V/50Hz | 3 | May choose and match (Before the purchase | 0.2 | +5~126Indoor temperature Optional | 1~600Minute | 1 | ±0.3usmn;0.3usmn;0.3 | 50 | Distilled water or Pure water | Ø38*18/2;38*18/2;38*18/2 | 70*51*82 | 77*65*93 |
| YM50B | 70 | Ø38*25/2;38*25/2;38*25/2 | 70*51*93 | 77*65*106 |
