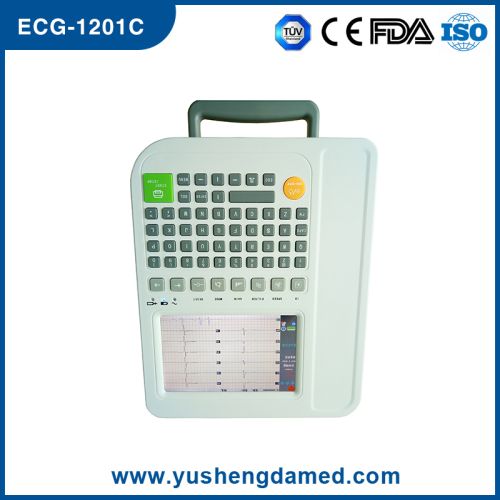

ECG-E1201c Ce Approved 12 Channel Digital ECG Machine

ECG-E1201c Ce Approved 12 Channel Digital ECG Machine

1+
1100 USD
800+
1 USD

add to cart
Model NO. ECG-E1201C
Type Digital EEG/ECG/EKG/EMG/VCG
Group Middle-aged and Old
Medical Devices Reg./Record No. 20152210095
Sampling Rate 1000Hz
LCD Size 7 Inch Color LCD
N.W 1.75kg
CPU 32 Bits
a/D Converter 14bit
Transport Package Carton
Origin Chengdu China
Classification Physiological Functions of Diagnosis and Monitoring Equipment
Certification CE, SGS, FDA, EEC, MSDS, ISO13485
Medical Device Regulatory Type Type 2
Acquisition Simultaneous 12 Leads
Working Mode Manual/Auto
PC-ECG Workstation Standard Accessories
Channel 12 Channel
U Disk Storage Support
Trademark YSD
Specification 640X400X530mm(4 sets) 240X310X370mm(1 sets)
HS Code 90181100
Twelve Channel ECG
Features:
1.12 channel ECG machine with interpretation
2.7' color TFT LCD displayisplay
3.Simultaneous 12 leads acquisition and (Manual/Auto)
recording with high resolution thermal printer
4.Manual/Auto working modes
5.Use digital isolation technology and digital signal processing
6.Baseline stabilization inspection
7.Full alphanumeric silicon keyboard
8.Support U disk storage
9.Support USB function (Optional)
Technical Specifications
Lead: Standard 12 leads
Acquisition: Simultaneous 12 leads
A/D Converter: 14bit
Sampling Rate: 1000Hz
Working Mode: Manual/Auto
Interference Filter: AC Filter and EMG Filter
CMMR: ≥100dB (with AC filter)ter)ter)
Input Circuit: Floating, protection circuit against defibrillator effect
Input Circuit Current: ≤0.1μA.1μAu;A.1μA
Input Impedance: ≥50MΩ50MΩ50MΩ
Patient Current Leakage: <10μA10μA
Calibrating Voltage: 1mV±2%lusmn;2%lusmn;2%
Skin Voltage Tolerance: ≥±500mVlusmn;500mVlusmn;500mV
Time Constant: ≥3.2s3.2s3.2s
Frequency Response: 0.05 Hz~250Hz
Noise Level: <15μVp-pmu;Vp-p
Sensitivity Threshold: ≤20μV20μVu;V20μV
Signal Channel Interference: ≤0.5mm.5mm.5mm
Printer: Thermal printer
Paper: 215mmx20m, roll
Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)usmn;3%)usmn;3%)
Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU: 32 bits
Safe Class: GB9706.1, Class I, Type CF
Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VAHz, Power ≤60VA0VAHz, Power ≤60VA
AC 85~265V, 50/60Hz
DC14.8V (2200mAh), rechargeable Li-ion battery
Dimension: 310mm×220mm×89mmmm×89mms;89mmmm×89mm
Weight:2kg (with battery)
Techincal Specifications

Power Supply
100-120V or 220-240V, 50/60Hz or internal rechargeable battery with lifetime of 60 minutes

Safety
Class I, type CF

LCD display
Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously

Leads
12 STANDARD or CABRERA leads

Defibrillation protection
Internal, according to current regulations

Recording modes
Manual, automatic sequential, automatic simultaneous, Rhythm lead selectable

Print Channels
12 channels , Rhythm lead selectable

Writing system
High-resolution thermal printer (8 dots/mm); Horizontal 40 dots/mm

Thermal paper
216mm wide 20M thermal paper in Z-fold packers or in rolls

Paper speed
5 - 6.25 - 10 - 12.5 - 25 - 50mm/s ± 3%usmn; 3%usmn; 3%

Recording sensitivity
Auto or Manual: 1.25 - 2.5 - 5 - 10 - 20 - 40mm/mV ±3%lusmn;3%lusmn;3%

Input dynamics
±500 mV @ 0 Hz ± 10 mV in the pass bandn the pass bandn the pass band

Input impedance
50 MΩ DC

Power requirements
AC220V/50Hz

Common-mode rejection
﹥ 90 dB0 dB

Frequency response
0.05 to 150 Hz

Time constant
>3.3 s

Data acquisition
12 bits; 1000 samples/sec/channel when printing, filtering and computing

Fuse Specification
2Φ5x20mmx20mmx20mm

Case storage
250 cases at least, can be stored on external SD card

Patient Cable
standard 10 leads

Resolution
3.125 uV/bit

Filters
Low pass filter off 75 Hz, 100 Hz, 150 Hz

Muscle filter: 25 or 35 Hz digital filters (-3 dB/oct)

AC filter: digital notch filters 50 or 60 Hz selectable, - 20 dB or better

Drift filter: 0.5 Hz high pass linear phase digital filter

Net weight
1.7 kg

Gross weight
5.kg

Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
