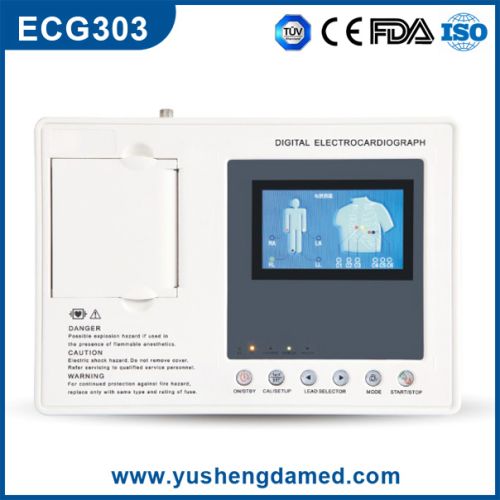

Ce ISO FDA Approved Three Channel Portable Digital ECG
| Model NO. | ECG-E303 |
| Type | Digital EEG/ECG/EKG/EMG/VCG |
| Group | Middle-aged and Old |
| Medical Devices Reg./Record No. | 20152210095 |
| Classification. | Physiological Functions of Diagnosis and Monitorin |
| LCD Size | 4.3 Inch |
| Print Modes | 5 Print Modes |
| Manufacture | Yes |
| Nter-Channel Interference | 0.5mm |
| Transport Package | Carton |
| Origin | Chengdu China |
| Classification | Physiological Functions of Diagnosis and Monitoring Equipment |
| Certification | CE, SGS, FDA, EEC, MSDS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| OEM | Acceptable |
| Type. | Digital EEG/ECG/EKG/Emg/Vcg |
| PC-ECG Workstation | Standard Accessories |
| Channel | 3 Channel |
| Power | 110-240V, 50/60Hz AC Power Supply |
| Trademark | YSD |
| Specification | 300mm*230mm*72mm |
| HS Code | 90181100 |
Features:
1. 4.3 inch 480x272 color graphic LCD display
2. Three channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 80mm 3-channel recording with a rhyth lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 3 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay
10. Built in USB/RS232 interface
Technical Specification
ECG Interface Features:
a. Real time synchronously acquisition through USB port
b. Electrocardialvector and Timed Vectorcardiograph analysis
c. Electrocardiograph auto-measurement and analysis
d. Available for normal A4 Paper
e. Multi-printing modes,networked cases management
f. Support communication with Rs232,convenient for clinical use.
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
1. 4.3 inch 480x272 color graphic LCD display
2. Three channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 80mm 3-channel recording with a rhyth lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 3 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay
10. Built in USB/RS232 interface
Technical Specification
| Lead | Standard 12 leads | Time constant | ≥3.2s3.2s3.2s |
| lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
| Work mode | 22 Series:Man / Auto/Analysis 33 Series: Man / Auto/Analysis/Storage | Noise level | <15μVp-pmu;Vp-p |
| Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm.5mm.5mm |
| CMMR | ≥100dB (with AC FILTER)TER)TER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
| Input circuit | Floating; Protection circuit against Defibrillator effect | Recording mode | 3ch, 3ch+, 3ch+++, 6ch Default Man. Mode is 3ch format Default Auto. Mode is 6ch+ format |
| Input Impedance | ≥50MΩ50MΩ50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%)usmn;3%)usmn;3%) |
| Input circuit current | ≤0.05μA05μAu;A05μA | Paper | 112mm *20m Roll paper |
| Patient current leakage | <10μA10μA | Communication | RS232/ USB port |
| Calibrating voltage | 1mV±2%lusmn;2%lusmn;2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),60VAlusmn;1Hz),60VAlusmn;1Hz),60VA DC Built-in rechargeable battery,14.4V(2000mmAh) |
| Voltage tolerance | ≥±500mVlusmn;500mVlusmn;500mV | Dimension/Weight | 300mm×230mm×72mm/2.8Kges;72mm/2.8Kges;72mm/2.8Kg |
ECG Interface Features:
a. Real time synchronously acquisition through USB port
b. Electrocardialvector and Timed Vectorcardiograph analysis
c. Electrocardiograph auto-measurement and analysis
d. Available for normal A4 Paper
e. Multi-printing modes,networked cases management
f. Support communication with Rs232,convenient for clinical use.
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
