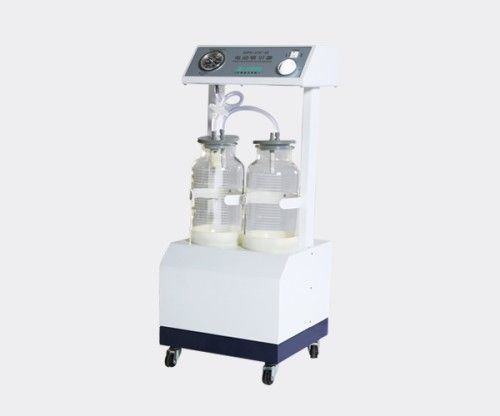

Electrical Suction Device (Mobile Setup) (AM-23C. III)
AM-23C·III electrical suction units are new style mobile suction devices.They are devices for medical use designed for operations of gynecology in hospitals for taking out pus, blood, sputum and other thick liquid in human body.man body.an body.
Features :
The device is equipped with a imported membrane pump available with long service life.
This device has low noise and is maintenance-free.
This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
It's equipped with the hand-operated switch and footstep-operated switch.
AM-23C. III electrical suction device is a new style suction device for medical use. It can meet most of the negative pressure requirements in operating rooms, wards and other departments in hospitals. It is used for taking out pus, blood, sputum and other thick liquid in human body. The machine adopts oil-free lubrication vacuum pump avoiding the pollution of oil mist, and the pump requires no daily maintenance and servicing. The liquid vessel placed directly on the mobile setup makes it easy to observe the liquid level in the vessel. Overflow protection device can prevent the liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works reliably, produces low level of noise. It is long in service life and reliable and safe in use (23C. V).
Technical Specifications:
Mains: AC 220V ± 10% 50Hz10% 50Hz10% 50Hz
Negative pressure value: ≥ 0.09Mpa9Mpa9Mpa
Air pumping efficiency: ≥ 25L/min/min/min
Pump structure: Imported film type pump
Liquid vessel: 2500ml x 2
Adjustment range of negative pressure: 0.013 - 0.09Mpa
Noise level: ≤ 55dB55dB55dB
Working mode: Intermittent loading, continuous operation
