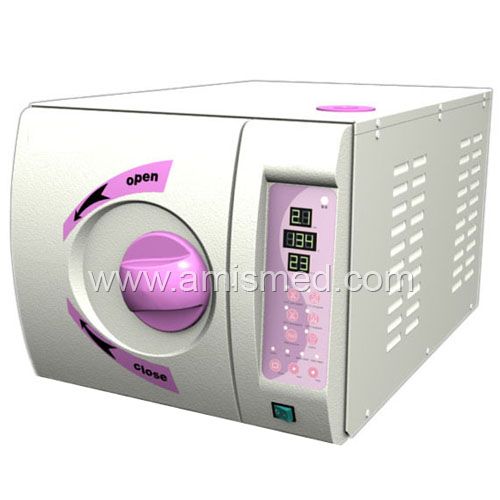

Three Times Of Pre-Vacuum Sterilizer (AM-3PV-22L)
Class B
Description:
Power: 1.7 KW 220V/50Hz ( Can Supply other Power)
Product Size(L× W× H): 700mm x 445mm x 390mm445mm x 390mm445mm x 390mm
Volume: 22L
Chamber Size: Φ 250mm× 450mmimes; 450mmimes; 450mm
Distance between foot pads of product(L× W): 480mm x 320mmx 320mmx 320mm
(Min dimensions of table)
Three Pre-vacuum Autoclaves are specially designed to sterilize various types of instruments like packaged, non-packaged, solid, etc. They are ideal for Agricultural Institutes, Veterinary Institutes, Opthalmic Surgeons, Dental Surgeons, Surgical Doctors, Polyclinics and Hospitals, Operation theaters, QC/Micro as a stand by unit.
Specification/
1. Chamber Capacity/22L
2. Sterilizing Temperature/ 121-134degrees
3. Chamber Size/Φ 250*450m*450m*450m
4. Drying Procedure/ Vacuum Drying
5. Display/ LED
6. Test Program/ Bowie & Dick Test Test Test
7. Sterilizing Data Port/ Built-in Printer(Optional)
8. Safety Features/ Safe Valve; Double-control lock system and self-test alarm system
9. Power/ 1.7 KW
10. Voltage/ 220V/50Hz (customizable)
11. Instrument Containers/ 3 layers pallet rack
12. Product Size(L*W*H)/700mm * 445mm * 390mm
13. Package/Wooden Box
14. Package Size(L*W*H)/ 790mm * 500mm * 445mm
15. GW/NW/ 58/50KGS
Features/
1. Adopt European Class B Standard.
2. Automatic operation
3. Electronic Control Module(Microprocessor Controls and LED Display for operation)
4. Safer & more reliable Machinery and Electronic double lock structurecturecture
5. B&D Test.Test.Test.
6. Steam generator and boiler heating separated
7. Built-in Printer(Optional)
8. Pre defined program list for easy operational setting
9. Sterilization/ 3-times plusing vaccuming
10. Low enough vacuum ability
11. Broad ventilation window design, convenient & fast for heat radiationationation
With CE Certificate, ISO13485, EN13060 Approved!
