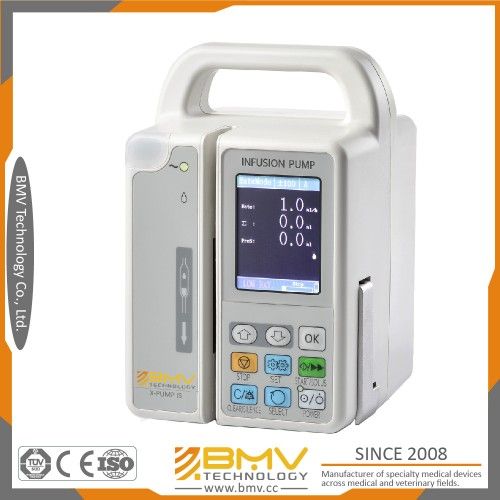

Electric Power Infusion Pump X-Pump I5 with Excellent Performance

1-500 USD

Model NO.	X-Pump I5
Type	Infusion Pump
Medical Device Regulatory Type	Type 2
Accumulated Infusion Volume	0.1-9999.9 Ml
Increment	1, 10, 100 (Ml/H)
Bolus Rate	100 - 1000 Ml/H
Status Indicator	Stop, Run, Bolus, Kvo
Dimension	120 mm(L) X140 mm(D) X195 mm(H)
Transport Package	Carton Box
Origin	Shenzhen, China
Classification	Infusion Pump
Group	All Patient
Mechanism	Peristaltic Pump
Infusion Rate Increment	0.1 Ml/H
Kvo Rate	0.1 – 5.0 Ml/H Adjustablejustableustable
Display	3.0 Inch Color TFT Screen
Battery	Lithium Polymer Battery(7.4V)
Trademark	BMV
Specification	120 mm(L) x140 mm(D) x195 mm(H)
HS Code	9018909090

X-Pump I5 Infusion Pump
Product feature
Drug library with all the most used drugs
History record review and last configuration memory
Change the flow rate while operating
Manual bolus and automatic bolus
Anti-bolus system to reduce significantly bolus after occlusion sudden release
Micro flow rate of 0.1ml/h and Body weight mode to satisfy the requirement for Neonatal/Pediatric
High speed infusion up to 2000ml/h satisfies special clinical scenario
3.0 inch color TFT Screen offers a good vision
Optional drip sensor and fluid heater
Wireless data transmission with infusion supervision system and bedside workstation(optional)
Specification list

X-Pump I5 Technical Specifications
Mechanism:	Peristaltic pump
Accumulated Infusion Volume	0.1-9999.9 ml
Operating Mode 1) Flow rate mode, rate range: 0.1 - 2000 ml/h, preset volume: 0.0 - 9999.9ml 2) Time mode, time range: 1 - 6000 min, preset volume: 0.1 - 9999.9ml 3) Body weight mode, weight range: 0.1 - 300.0kg, drug limit: 0.1-999.9mg, drug unit: mg/g, dose unit: ug/kg/min or mg/kg/h 4) Drop rate mode, rate range: 1 - 400 drop/min with optional Drip Sensor, preset volume range: 0.0 - 9999.9ml
Infusion Rate Increment	0.1 ml/h
Accuracy	± 5%usmn; 5%usmn; 5%
Increment	1, 10, 100 (ml/h)
Accuracy	± 5%usmn; 5%usmn; 5%
KVO Rate	0.1 - 5.0 ml/h adjustable
Bolus Rate	100 - 1000 ml/h
Display
Screen	3.0 inch color TFT screen
Information	Flow Rate, Preset Volume, Accumulated infusion volume, Bed No., Pressure, AC Power indicator, Battery capacity, Battery charge indicator, etc.
Status Indicator	Stop, Run, Bolus, KVO
Alarm Type Air Bubble, Finish, Occlusion, Infusion set disengaged, No AC Power, Low Battery, Battery Empty,Reminder to operate, Handle opened, Errors Air Bubble Level: 1-3 levels adjustable, turn off Occlusion Alarm Pressure Range: 70kPa, 100kPa, 130kPa (±30kPa), Level Low as default default default
Battery
Type	Lithium polymer battery(7.4V)
Life	Up to 2 hours continuous operation@25 ml/h flow rate with optional battery,1 hour with standard battery.
Environment
Temperature	5 - 40 ºC for operating, -20 - 60 ºC for storagefor storagefor storage
Air Pressure	57 - 106 kPa for operating, 50 - 106 kPa for storage
Humidity	15 % - 95 % for operating, 10 % - 95 % for storage
Others
Classification	Class II, Type CF
Dimension	120 mm(L) × 140 mm(D) × 195 mm(H)es; 195 mm(H)es; 195 mm(H)
Weight	Approximately 1.8 kg
Power Supply	100 - 240 VAC, 50/60 Hz
Waterproof level	IP21
