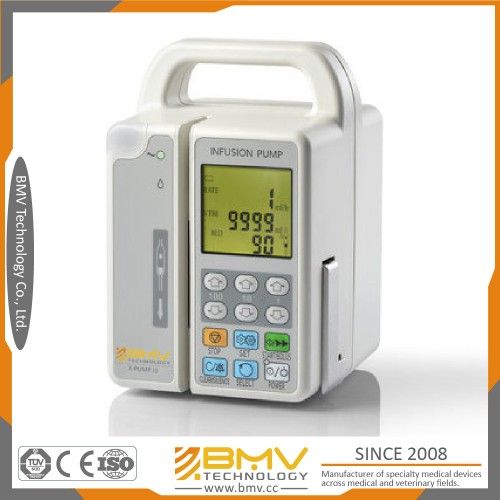

X-Pump I3 Peristaltic Infusion Pump with Ce Certificate
| Model NO. | X-Pump I3 |
| Type | Infusion Pump |
| Medical Device Regulatory Type | Type 2 |
| Operating Mode | Flow Rate Mode, Drop Rate Mode (Optional) |
| Accumulated Infusion Volume | 1-9999 Ml |
| Increment | 1, 10, 100 (Ml/H) |
| Bolus Rate | 600 Ml/H |
| Display | 2.7 Inch B/W LCD |
| Transport Package | Carton Box |
| Origin | Shenzhen, China |
| Classification | Infusion Pump |
| Group | All Patient |
| Mechanism | Peristaltic Pump |
| Preset Volume | 1-9999 Ml |
| Flow Rate Range | 1 - 2000 Ml/H for 600ib Infusion Pump |
| Kvo Rate | 1 Ml/H |
| Drop Rate Range | 1 – 400 Drop/Min with Optional Drip Sensorp Sensor Sensor |
| Trademark | BMV |
| Specification | 120 mm(L) x140 mm(D) x195 mm(H) |
| HS Code | 9018909090 |
X-Pump I3 Infusion Pump
Product feature
Innovative door-free design for easy operation
Middle Detection and Ultrasound Detectors to double guarantee the correct IV set loading
Anti-bolus system to reduce significantly bolus after occlusion sudden release
Reminder alarm in case of forgetting to start the operation
High speed infusion up to 2000ml/h satisfies special clinical scenario
Optional drip sensor and fluid heater
Wireless data transmission with infusion supervision system
Specification list
Product feature
Innovative door-free design for easy operation
Middle Detection and Ultrasound Detectors to double guarantee the correct IV set loading
Anti-bolus system to reduce significantly bolus after occlusion sudden release
Reminder alarm in case of forgetting to start the operation
High speed infusion up to 2000ml/h satisfies special clinical scenario
Optional drip sensor and fluid heater
Wireless data transmission with infusion supervision system
Specification list
| X-Pump I3 Technical Specifications | |
| Mechanism: | Peristaltic pump |
| Operating Mode | Flow Rate Mode, Drop rate Mode (optional) |
| Preset Volume | 1-9999 ml |
| Accumulated Infusion Volume | 1-9999 ml |
| Flow Rate Range | 1 - 2000 ml/h for 600IB Infusion Pump |
| Increment | 1, 10, 100 (ml/h) |
| Accuracy | ± 5%usmn; 5%usmn; 5% |
| KVO Rate | 1 ml/h |
| Bolus Rate | 600 ml/h |
| Drop rate range | 1 - 400 drop/min with optional Drip Sensor |
| Display | |
| Screen | 2.7 inch B/W LCD |
| Information | Flow Rate and unit, Preset Volume and unit, Accumulated infusion volume and unit, Finish, Occlusion, Air Bubble, Bed No., AC Power indicator, Battery capacity, Battery charge indicator, IV set, etc. |
| Status Indicator | Stop, Run, Bolus, KVO |
| Alarm Type Air Bubble, Finish, Occlusion, No AC Power, Low Battery, Battery Empty, Reminder to operate, Errors, Handle opened Air Bubble Level: 1-3 levels adjustable, turn off Occlusion Alarm Pressure Range: 3 levels: 70kPa, 100kPa, 130kPa (±30kPa), Level Low as default default default | |
| Battery | |
| Type | Lithium polymer battery |
| Life | Basic speed Infusion pump: 4h High speed Infusion pump: 2h |
| Environment | |
| Temperature | 5 - 40 ºC for operating, -20 - 60 ºC for storagefor storagefor storage |
| Air Pressure | 57 - 106 kPa for operating, 50 - 106 kPa for storage |
| Humidity | 15 % - 95 % for operating, 10 % - 95 % for storage |
| Others | |
| Classification | Class II, Type CF |
| Dimension | 120 mm(L) × 140 mm(D) × 195 mm(H)es; 195 mm(H)es; 195 mm(H) |
| Weight | Approximately 1.7 kg |
| Power Supply | 100 - 240 VAC, 50/60 Hz |
| Waterproof level | IP21 |
