Ce Approved Medical Syringe Pump X-Pump S8
| Model NO. | X-Pump S8 |
| Type | Syringe Pump |
| Group | All Patient |
| Display Screen | 2.0 Inch B/W LCD |
| Operating Mode | Flow Rate Mode |
| Preset Volume | 0.0-999.9ml |
| Kvo Rate | 0.1-5.0ml/H Adjustable, 1ml/H as Default |
| Power Supply | 100 - 240 VAC, 0.25-0.11A, 50/60 Hz |
| Trademark | BMV |
| Specification | 310 mm(L) × 125 mm(D) × 115 mm(H)mes; 115 mm(H)es; 115 mm(H) |
| HS Code | 9018310000 |
| Classification | Syringe Pump |
| Certification | CE, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Battery | Lithium Polymer Battery |
| Syringe Type | 10, 20, 50 Ml |
| Accumulated Injection Volume | 0.1 - 999.9 Ml |
| Weight | Approximately 1.8 Kg |
| Waterproof Level | IP23 |
| Transport Package | Carton Box |
| Origin | Shenzhen, China |

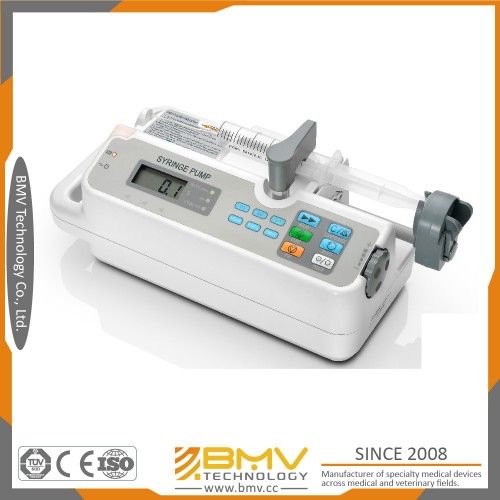

X-Pump S8 Syringe Pump
designed for neonatal, pediatric and adult patients in the ICU and OR.
Product Features
Drug library with all the most used drugs
History record review and last configuration memory
Change the flow rate while operating
Manual bolus and automatic bolus
Anti-bolus system to reduce significantly bolus after occlusion sudden release
Micro flow rate of 0.1ml/h and Body weight mode to satisfy the requirement for Neonatal
Wireless data transmission with infusion supervision system (optional)
Specification list
designed for neonatal, pediatric and adult patients in the ICU and OR.
Product Features
Drug library with all the most used drugs
History record review and last configuration memory
Change the flow rate while operating
Manual bolus and automatic bolus
Anti-bolus system to reduce significantly bolus after occlusion sudden release
Micro flow rate of 0.1ml/h and Body weight mode to satisfy the requirement for Neonatal
Wireless data transmission with infusion supervision system (optional)
Specification list
| X-Pump S8 Technical Specifications | |
| Operating Mode | Flow Rate Mode |
| Syringe Type | 10, 20, 50 ml |
| Preset Volume | 0.0-999.9ml |
| Accumulated Injection Volume | 0.1 - 999.9 ml |
| Flow Rate Range | 10 ml syringe: 0.1 ml/h - 100 ml/h (increment 0.1 ml/h) 20 ml syringe: 0.1 ml/h - 200 ml/h (increment 0.1 ml/h) 50 ml syringe: 0.1 ml/h - 500 ml/h (increment 0.1 ml/h) |
| Accuracy | ± 3%usmn; 3%usmn; 3% |
| Bolus Rate | 10 ml syringe: 100 ml/h 20 ml syringe : 200 ml/h 50 ml syringe : 500 ml/h |
| KVO Rate | 0.1-5.0ml/h adjustable, 1ml/h as default |
| Display | |
| Screen | 2.0 inch B/W LCD |
| Information | Flow Rate, Accumulated injection volume, Preset volume, Syringe size, Battery capacity, Bed No., AC power indicator, Battery charge indicator,etc. |
| Alarm Type Finish, Near, Syringe Empty, Syringe Disengaged, Occlusion, System Error, Battery Empty, Low Battery, Reminder to operate, No AC Power Occlusion Alarm Pressure Range 3 levels: 70kPa, 100kPa, 130kPa (±30kPa), Level Low as default default default | |
| Battery | |
| Type | Lithium polymer battery |
| Operation Time | Up to 4 hours continuous operation @5 ml/h flow rate with standard battery Up to 5 hours continuous operation @5 ml/h flow rate with optional battery |
| Environment | |
| Temperature | 5 - 40 ºC for operating, -20 - 60 ºC for storagefor storagefor storage |
| Air Pressure | 57 - 106 kPa for operating, 50 - 106 kPa for storage |
| Humidity | 15 % - 95 % for operating, 10 % - 95 % for storage |
| Others | |
| Classification | Class II, Type CF |
| Dimension | 310 mm(L) × 125 mm(D) × 115 mm(H)es; 115 mm(H)es; 115 mm(H) |
| Weight | Approximately 1.8 kg |
| Power Supply | 100 - 240 VAC, 0.25-0.11A, 50/60 Hz |
| Waterproof level | IP23 |
