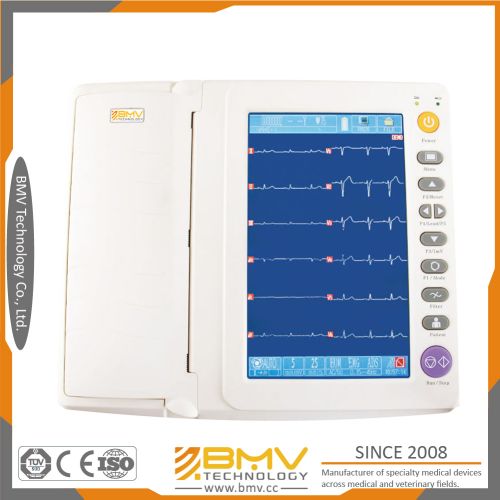

Bes-1210bt Hospital Use Medical Equipment ECG with Analysis
| Model NO. | BES-1210BT |
| Type | Digital EEG/ECG/EKG/EMG/VCG |
| Group | Everyone |
| Medical Devices Reg./Record No. | Yssyjx20150068 |
| Safety | Class I, Type CFType CF |
| Defibrillation Protection | Internal, According to Current Regulations |
| Print Channels | 12 Channels , Rhythm Lead Selectable |
| Thermal Paper | 216mm Wide 20m Thermal Paper in Z-Fold Packers or |
| Case Storage | 150 Cases at Least, Can Be Stored on External SD C |
| Transport Package | Carton Box |
| Origin | Shenzhen, China |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| LCD Display | 10 Inch Touchscreen Display 12 Channel ECG Wavefor |
| Leads | 12 Standard or Cabrera Leads |
| Recording Modes | Manual, Automatic Sequential, Automatic Simultaneo |
| Writing System | High-Resolution Thermal Printer (8 Dots/mm); Horiz |
| Data Acquisition | 12 Bits; 1000 Samples/Sec/Channel When Printing, F |
| Trademark | BMV |
| Specification | 22*42*37cm |
- Portable and delicate design, big touch screen, very easy to operate
- Accurate pulse pace identification function
- High accuracy digital filter, automatic baseline adjustment Working modes: Manual, Automatic, Arrythmia Analysis, Storage
- 215mm, 12 channel format recording, excellent automatic interpretation
- 800x480 graphic 10 inch color touch LCD to simultaneously display ECG information
- 250 patient cases storage ( SD card storage is optional )
- Detailed patient information record
- Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery continuously working for about 4 hours
- USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )
Specification
- Accurate pulse pace identification function
- High accuracy digital filter, automatic baseline adjustment Working modes: Manual, Automatic, Arrythmia Analysis, Storage
- 215mm, 12 channel format recording, excellent automatic interpretation
- 800x480 graphic 10 inch color touch LCD to simultaneously display ECG information
- 250 patient cases storage ( SD card storage is optional )
- Detailed patient information record
- Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery continuously working for about 4 hours
- USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )
Specification
| Lead | Standard 12 leads |
| Lead acquisition | 12bit/1000Hz (synchronously 12 leads) |
| Work mode | Manual / Auto / R-R Analysis |
| Filter | .ACFilter :50Hz/60Hz |
| .EMG Filter :25Hz/45Hz | |
| .Anti-Drift Filter :0.15Hz ( Adaptive ) | |
| CMMR | ≤120dB (with ACFilter)ter)ter) |
| Input circuit | Floating :Protection circuit againt Defibrillator effect |
| Input impedance | ≤50MQ50MQ50MQ |
| Input circuit current | 0.05 μAmu;Amu;A |
| Patient current leakage | <10HA10HA |
| Calibrating voltage | LmV±2%lusmn;2%lusmn;2% |
| Voltage tolerance | ≥ ±500mVlusmn;500mVlusmn;500mV |
| Time constant | ≥ 3.2s3.2s3.2s |
| Frequency response | 0.05~160Hz( -3db) |
| Noise level | <15MVp-pVp-p |
| Inter-channel interference | ≤0.5mm.5mm.5mm |
| Sensitivity | Auto, 2.5, 5,10,20,40mm/mV (±3%)usmn;3%)usmn;3%) |
| Recording mode | .3ch+ + +,6ch,6ch+,12ch |
| .Default Man.Mode is 3ch+ + + format | |
| .Default Auto.Mode is 12ch format | |
| Paper speed | 6.25,12.5, 25,50mm/s (±3%)usmn;3%)usmn;3%) |
| Paper | 215mm x 20m roll / 210x140mm Z-fold paper |
| Working environment | Temperature 5-40' C:Humidity 25-95%25-95% |
| Power supply | .AC 110-230V (±10%), 50/60Hz (±lHz), 60VAusmn;lHz), 60VAusmn;lHz), 60VA |
| .DC Built-in rechargeable battery,14.4V (4400mAh) | |
| Dimension / Weight | 347mm x 293mm x 83mm, 5.8kgs |
