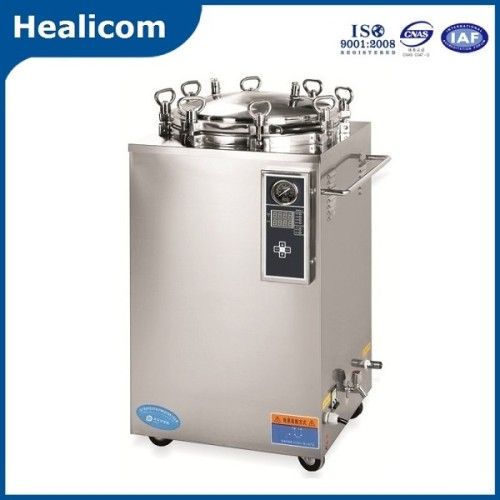

Automatic Vertical Sterilizer Autoclave (HVS-75D)

700-1500 USD

Model NO.	HVS-75D
Type	Pressure Steam Sterilization Equipments
Electric Tension	220V
Ultra High Temperature Alarm	Ultra High Temperature Alarm
Material	Stainless Steel
Maximum Working Pressure	0.22MPa
Max Working Pressure	0.23 MPa
Chamber Temperature Equal	≤±1°c;±1°cmn;1°c;±1°c
Trademark	Healicom
Origin	China
Theory	Pressure Steam
Certification	CE, ISO13485
LCD Display	Without LCD Display
Sterilization Information Recording and Printing	Sterilization Information Recording and Printing
Sterilizing Volume	75L
Working Temperature	134°c°cg;c°c
Timer Scope	0~99min or 0~99hour
Adjustment of Temperature	105~134°c°cg;c°c
Specification	ISO
HS Code	8419200000

CHARACTERISTICS:
1. Fully stainless high-alloy steel structure
2. Digital display of working status, touch of key
3. Manual or semi-automatic control
4. Auto discharge the cool air, and steam discharging automatically after sterilization
5. Automatically shut off with beep reminding after sterilization
6. The accident protection system
7. Automatic off of heating elements at reducing of a water level
8. Blocking top cover at working
9. Blockage of starting at opening
10. Heater protection sensor
11. Pressure and water level control
12. With three stainless steel sterilizing baskets
13. Easy to operate, safe and reliable
14. The drying system is optional, which can be equipped according to the customer's request.
Technical Data:

Model technical data	HVS-35D	HVS-50D	HVS-75D	HVS-100D
Valid volume	35L(φ318×450)mmimes;450)mmimes;450)mm	50L(φ340×550)mmimes;550)mmimes;550)mm	75L(φ400×600)mmimes;600)mmimes;600)mm	100L(φ440×650)mmimes;650)mmimes;650)mm
working pressure	0.22MPa
Working temperature	134ºCordm;Cordm;C
Max working pressure	0.23 Mpa
Heat average	≤±1ºC±1ºCsmn;1ºC±1ºC
Timer	0~99min or 0~99hour
Adjustment of temperature	105~134ºCordm;Cordm;C
Power	2.5kW/AC220V 50Hz	3kW/AC220V 50Hz	4.5kW/AC220V 50Hz
Overall dimension	450×450×750(mm)times;750(mm)times;750(mm)	500×530×980(mm)times;980(mm)times;980(mm)	560×560×980(mm)times;980(mm)times;980(mm)	590×590×1080(mm)imes;1080(mm)imes;1080(mm)
Transport dimension	570×550×970(mm)times;970(mm)times;970(mm)	590×590×1120(mm)imes;1120(mm)imes;1120(mm)	650×630×1150(mm)imes;1150(mm)imes;1150(mm)	680×650×1220(mm)imes;1220(mm)imes;1220(mm)
N/G.W.	45/65Kg	50/80Kg	70/100Kg	85/115Kg
