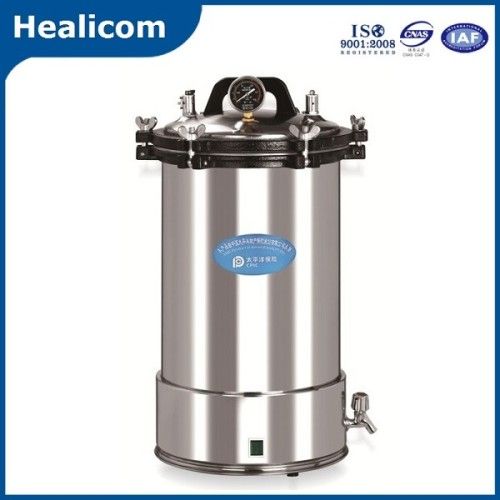

Portable Pressure Steam Sterilizer Autoclave (YX-280)
| Model NO. | YX-280 |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Material | Stainless Steel |
| Working Pressure | 0.14 -0.16 MPa |
| Adjustment of Temperature | 105°c-126°c-126°cg;c-126°c |
| Heat Average | ≤±1°c;±1°cmn;1°c;±1°c |
| Specification | ISO |
| HS Code | 8419200000 |
| Theory | Pressure Steam |
| Certification | CE, ISO13485 |
| LCD Display | Without LCD Display |
| Sterilization Information Recording and Printing | Without Sterilization Information Recording and Printing |
| Sterilizing Volume | 18L |
| Working Temperature | 126°c°cg;c°c |
| Max. Safety Pressure | 0.165MPa |
| Trademark | Healicom |
| Origin | China |
CHARACTERISTICS:
1.With safety valve, release valve and gauge, when the steam pressure go over 0.165Mpa, the release valve should exhaust the pressure to ensure the safety, there is reading on the gauge face for both Mpa and temperature for check the data.
2.The product adopts immersion electro thermal tube to heat.
3.The container and drum adopted stainless steel 0Gr18Ni9Ti, anti-acid, anti-alkali and anti-rust
TECHNICAL DATA:
Contact us:
Add: Room 618, New Wanli Plaza, No.9 Baixia Road, Nanjing, China
Tel: +86-025-84452678 Mobile: +88-13951660247 / 17701595378
www.healicom.com
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
1.With safety valve, release valve and gauge, when the steam pressure go over 0.165Mpa, the release valve should exhaust the pressure to ensure the safety, there is reading on the gauge face for both Mpa and temperature for check the data.
2.The product adopts immersion electro thermal tube to heat.
3.The container and drum adopted stainless steel 0Gr18Ni9Ti, anti-acid, anti-alkali and anti-rust
TECHNICAL DATA:
| Model Technical Data | YX-280 | YX-280(Deepened) |
| sterilizing volume | 18L(φ280×260 mm)mes;260 mm)mes;260 mm) | 24L(φ280×390 mm)mes;390 mm)mes;390 mm) |
| working pressure | 0.14 -0.16 MPa | |
| working temperature: | 126ºCordm;Cordm;C | |
| temperature adjust range | 105-126ºCordm;Cordm;C | |
| Max. safety pressure | 0.165Mpa | |
| heat average | ≤±1ºC±1ºCsmn;1ºC±1ºC | |
| power / consumption | AC220V.50Hz / 2KW | |
| dimension | 410×410×520 mm×520 mm520 mm×520 mm | 410×410×630 mm×630 mm630 mm×630 mm |
| N / G. W | 16 / 18KG | 17 / 19 KG |
