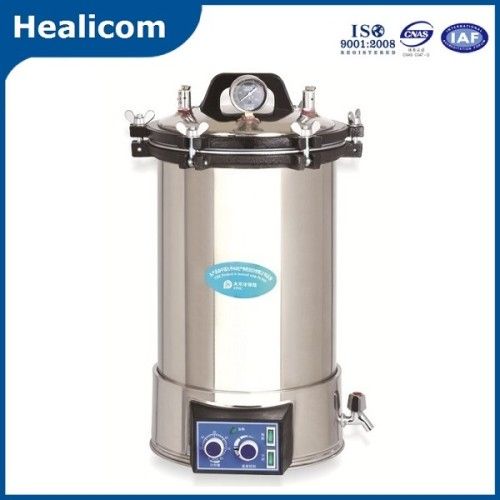

Portable Pressure Steam Sterilizer Autoclave (YX-280D)
| Model NO. | YX-280D |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Material | Stainless Steel |
| Working Pressure | 0.14 -0.16 MPa |
| Adjustment of Temperature | 105°c-126°c-126°cg;c-126°c |
| Heat Average | ≤±1°c;±1°cmn;1°c;±1°c |
| Specification | ISO |
| HS Code | 8419200000 |
| Theory | Pressure Steam |
| Certification | CE, ISO13485 |
| LCD Display | Without LCD Display |
| Sterilization Information Recording and Printing | Without Sterilization Information Recording and Printing |
| Sterilizing Volume | 18L |
| Working Temperature | 126°c°cg;c°c |
| Max. Safety Pressure | 0.165MPa |
| Trademark | Healicom |
| Origin | China |
CHARACTERISTICS:
1. With pressure steam adjuster, when pressure reached the setting value, it'll keep and control.
2. With timer, when the time reached the setting, auto turn off power and alarm to tell sterilize end.
3. With safety valve, release valve and gauge, when the steam pressure go over 0.165Mpa, the release valve should exhaust the pressure to ensure the safety, there is reading on the gauge face for both Mpa and temperature for check the data.
4. With electric heating elements of immerge type, auto pressure control and water lack protection.
5. The container and drum adopted stainless steel 0Gr18Ni9Ti, anti-acid, anti-alkali and anti-rust.
And main mechanism capability treble upwards than aluminium alloy, so it will be insure the safety capability and service life.
TECHNICAL DATA:
Contact us:
Add: Room 618, New Wanli Plaza, No.9 Baixia Road, Nanjing, China
Tel: +86-025-84452678 Mobile: +88-13951660247 / 17701595378
www.healicom.com
1. With pressure steam adjuster, when pressure reached the setting value, it'll keep and control.
2. With timer, when the time reached the setting, auto turn off power and alarm to tell sterilize end.
3. With safety valve, release valve and gauge, when the steam pressure go over 0.165Mpa, the release valve should exhaust the pressure to ensure the safety, there is reading on the gauge face for both Mpa and temperature for check the data.
4. With electric heating elements of immerge type, auto pressure control and water lack protection.
5. The container and drum adopted stainless steel 0Gr18Ni9Ti, anti-acid, anti-alkali and anti-rust.
And main mechanism capability treble upwards than aluminium alloy, so it will be insure the safety capability and service life.
TECHNICAL DATA:
| Model Technical Data | YX-280D | YX-280D(Deepened) |
| sterilizing volume | 18L(φ280×260 mm)mes;260 mm)mes;260 mm) | 1.obtion 24L(φ280×390 mm)mes;390 mm)mes;390 mm) 2.obtion 30L(φ310×360 mm)mes;360 mm)mes;360 mm) |
| working pressure | 0.22 MPa | |
| working temperature: | 134ºCordm;Cordm;C | |
| temperature adjust range | 105-134ºCordm;Cordm;C | |
| timer range: | 0-60min | |
| Max. safety pressure | 0.23Mpa | |
| heat average | ≤±1ºC±1ºCsmn;1ºC±1ºC | |
| power / consumption | AC220V.50Hz / 2KW | |
| dimension | 410×410×520 mm×520 mm520 mm×520 mm | 410×410×630 mm×630 mm630 mm×630 mm |
| N / G. W | 16 / 18KG | 18 / 20 KG |
