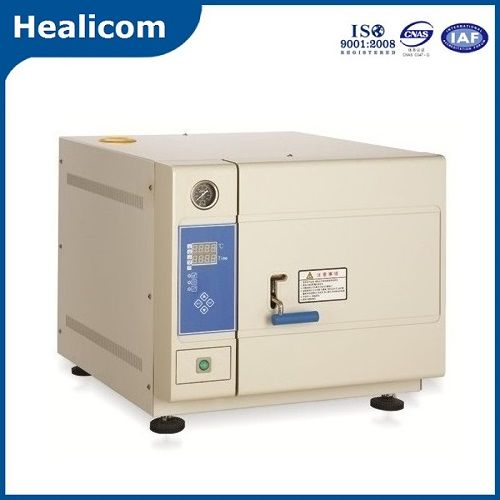

Table Top Steam Sterilizer Autoclave with CE Approved
| Model NO. | HTS-25C |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Material | Stainless Steel |
| Maximum Working Pressure | 0.22MPa |
| Adjustment of Temperature | 105-134°c°cg;c°c |
| Chamber Temperature Equal | ≤±1°c;±1°cmn;1°c;±1°c |
| Specification | ISO |
| HS Code | 8419200000 |
| Theory | Pressure Steam |
| Certification | CE, ISO13485 |
| LCD Display | With LCD Display |
| Sterilization Information Recording and Printing | Sterilization Information Recording and Printing |
| Sterilizing Volume | 24L |
| Working Temperature | 134°c°cg;c°c |
| Timer | 0-99 Min |
| Trademark | Healicom |
| Origin | China |
Characteristics:
1.For 4~6 minutes rapidly sterilizing.
2.Digital display of working status, touch type key.
3.With 3 fixed cycles of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
4.The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
4.Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5.Exhaust the cool air automatically.
6.Safe protection of water lacking.
7.Door safety lock system.
8.With four stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
11.With drying function.
Technical Specifications:
Contact us:
Add: Room 618, New Wanli Plaza, No.9 Baixia Road, Nanjing, China
Tel: +86-025-84452678 Mobile: +88-13951660247 / 17701595378
www.healicom.com
1.For 4~6 minutes rapidly sterilizing.
2.Digital display of working status, touch type key.
3.With 3 fixed cycles of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
4.The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
4.Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5.Exhaust the cool air automatically.
6.Safe protection of water lacking.
7.Door safety lock system.
8.With four stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
11.With drying function.
Technical Specifications:
| MODEL TECHNICAL DATA | HTS-20C | HTS-25C | HTS-35C | HTS-50C |
| Sterilizing chamber volume | 20L | 24L | 35L | 50L |
| (φ250×420 mm)mes;420 mm)mes;420 mm) | (φ250×520 mm)mes;520 mm)mes;520 mm) | (φ300×500 mm)mes;500 mm)mes;500 mm) | (φ340×550 mm)mes;550 mm)mes;550 mm) | |
| Working pressure | 0.22Mpa | |||
| Working temperature | 134ºCordm;Cordm;C | |||
| Adjustment of temperature | 105-134ºCordm;Cordm;C | |||
| Timer | 0-99 min | |||
| Heat average | ≤ ± 1ºCplusmn; 1ºCrdm;Cplusmn; 1ºC | |||
| Power | 1.5 KW / AC220V 50Hz | 2.7 KW / AC220V 50Hz | ||
| Sterilizing plate | 340×200×30 mm0×30 mm;30 mm0×30 mm | 400×200×30 mm0×30 mm;30 mm0×30 mm | 400×200×30 mm0×30 mm;30 mm0×30 mm | 500×250×30 mm0×30 mm;30 mm0×30 mm |
| (3piece) | (3piece) | (4piece) | (4piece) | |
| Dimension | 480×480×380 mm×380 mm380 mm×380 mm | 580×480×384 mm×384 mm384 mm×384 mm | 730×550×510 mm×510 mm510 mm×510 mm | 770×600×540 mm×540 mm540 mm×540 mm |
| Package dimension | 700×580×500 mm×500 mm500 mm×500 mm | 800×580×500 mm×500 mm500 mm×500 mm | 810×680×650 mm×650 mm650 mm×650 mm | 880×730×700 mm×700 mm700 mm×700 mm |
| G. W/N.W | 43/40 kg | 50/45 kg | 105/78 kg | 122/93 kg |
