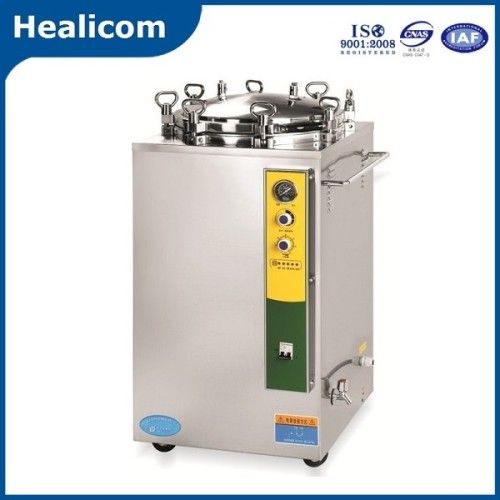

50L Vertical Pressure Steam Sterilizer Autoclave
| Model NO. | HVS-50 |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Material | Stainless Steel |
| Maximum Working Pressure | 0.22MPa |
| Max Working Pressure | 0.23 MPa |
| Chamber Temperature Equal | ≤±1°c;±1°cmn;1°c;±1°c |
| Specification | ISO |
| HS Code | 8419200000 |
| Theory | Pressure Steam |
| Certification | CE, ISO13485 |
| LCD Display | Without LCD Display |
| Sterilization Information Recording and Printing | Sterilization Information Recording and Printing |
| Sterilizing Volume | 50L |
| Working Temperature | 134°c°cg;c°c |
| Timer Scope | 0~60min |
| Trademark | Healicom |
| Origin | China |
Characteristics:
1. Fully stainless steel structure
2. Indicator light indicates working state
3. Over temperature & over pressure auto-protectionctionction
4. Double scale indication pressure gauge
5. Safe protection of water lacking
6. Automatically shut off with beep reminding after sterilization
7. Easy to operate, safe and reliable
8. With two stainless steel sterilizing baskets
Technical Data:
Contact us:
Add: Room 618, New Wanli Plaza, No.9 Baixia Road, Nanjing, China
Tel: +86-025-84452678 Mobile: +88-13951660247 / 17701595378
www.healicom.com
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
1. Fully stainless steel structure
2. Indicator light indicates working state
3. Over temperature & over pressure auto-protectionctionction
4. Double scale indication pressure gauge
5. Safe protection of water lacking
6. Automatically shut off with beep reminding after sterilization
7. Easy to operate, safe and reliable
8. With two stainless steel sterilizing baskets
Technical Data:
| Model technical data | HVS-35 | HVS-50 | HVS-75 | HVS-100 |
| Chamber volume | 35L(φ318×450) mmmes;450) mmmes;450) mm | 50L( φ340×550) mmmes;550) mmmes;550) mm | 75L(φ400×600) mmmes;600) mmmes;600) mm | 100L(φ440×650) mmmes;650) mmmes;650) mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134ºCordm;Cordm;C | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1ºC±1ºCsmn;1ºC±1ºC | |||
| Timer scope | 0~60min | |||
| Temperature scope | 105~134ºCordm;Cordm;C | |||
| Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
| Overall dimension | 480×460×850(mm)times;850(mm)times;850(mm) | 520×520×980(mm)times;980(mm)times;980(mm) | 560×560×980(mm)times;980(mm)times;980(mm) | 590×590×1080(mm)imes;1080(mm)imes;1080(mm) |
| Transport dimension | 570×550×970(mm)times;970(mm)times;970(mm) | 590×590×1110(mm)imes;1110(mm)imes;1110(mm) | 650×630×1150(mm)imes;1150(mm)imes;1150(mm) | 680×650×1220(mm)imes;1220(mm)imes;1220(mm) |
| G.W/N.W | 56Kg/ 42Kg | 68Kg/ 50Kg | 90Kg/70Kg | 105Kg/85K |
Contact us:
Add: Room 618, New Wanli Plaza, No.9 Baixia Road, Nanjing, China
Tel: +86-025-84452678 Mobile: +88-13951660247 / 17701595378
www.healicom.com
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
