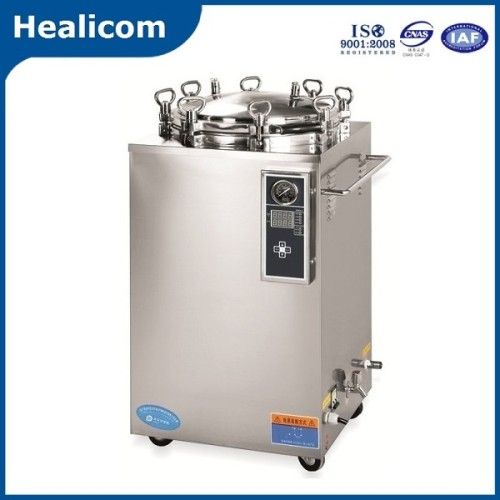

Automatic Vertical Pressure Steam Sterilizer with Ce (HVS-50D)
| Model NO. | HVS-50D |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Material | Stainless Steel |
| Maximum Working Pressure | 0.22MPa |
| Max Working Pressure | 0.23 MPa |
| Chamber Temperature Equal | ≤±1°c;±1°cmn;1°c;±1°c |
| Trademark | Healicom |
| Origin | China |
| Theory | Pressure Steam |
| Certification | CE, ISO13485 |
| LCD Display | With LCD Display |
| Sterilization Information Recording and Printing | Sterilization Information Recording and Printing |
| Sterilizing Volume | 50L |
| Working Temperature | 134°c°cg;c°c |
| Timer Scope | 0~99min or 0~99hour |
| Adjustment of Temperature | 105~134°c°cg;c°c |
| Specification | ISO |
| HS Code | 8419200000 |
Characteristics:
1. Fully stainless high-alloy steel structure
2. Digital display of working status, touch of key
3. Manual or semi-automatic control
4. Auto discharge the cool air, and steam discharging automatically after sterilization
5. Automatically shut off with beep reminding after sterilization
6. The accident protection system
7. Automatic off of heating elements at reducing of a water level
8. Blocking top cover at working
9. Blockage of starting at opening
10. Heater protection sensor
11. Pressure and water level control
12. With three stainless steel sterilizing baskets
13. Easy to operate, safe and reliable
14. The drying system is optional, which can be equipped according to the customer's request.
Technical Data:
Contact us:
Add: Room 618, New Wanli Plaza, No.9 Baixia Road, Nanjing, China
Tel: +86-025-84452678 Mobile: +88-13951660247 / 17701595378
www.healicom.com
1. Fully stainless high-alloy steel structure
2. Digital display of working status, touch of key
3. Manual or semi-automatic control
4. Auto discharge the cool air, and steam discharging automatically after sterilization
5. Automatically shut off with beep reminding after sterilization
6. The accident protection system
7. Automatic off of heating elements at reducing of a water level
8. Blocking top cover at working
9. Blockage of starting at opening
10. Heater protection sensor
11. Pressure and water level control
12. With three stainless steel sterilizing baskets
13. Easy to operate, safe and reliable
14. The drying system is optional, which can be equipped according to the customer's request.
Technical Data:
| Model technical data | HVS-35D | HVS-50D | HVS-75D | HVS-100D |
| Valid volume | 35L(φ318×450)mmimes;450)mmimes;450)mm | 50L(φ340×550)mmimes;550)mmimes;550)mm | 75L(φ400×600)mmimes;600)mmimes;600)mm | 100L(φ440×650)mmimes;650)mmimes;650)mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134ºCordm;Cordm;C | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1ºC±1ºCsmn;1ºC±1ºC | |||
| Timer | 0~99min or 0~99hour | |||
| Adjustment of temperature | 105~134ºCordm;Cordm;C | |||
| Power | 2.5kW/AC220V 50Hz | 3kW/AC220V 50Hz | 4.5kW/AC220V 50Hz | |
| Overall dimension | 450×450×750(mm)times;750(mm)times;750(mm) | 500×530×980(mm)times;980(mm)times;980(mm) | 560×560×980(mm)times;980(mm)times;980(mm) | 590×590×1080(mm)imes;1080(mm)imes;1080(mm) |
| Transport dimension | 570×550×970(mm)times;970(mm)times;970(mm) | 590×590×1120(mm)imes;1120(mm)imes;1120(mm) | 650×630×1150(mm)imes;1150(mm)imes;1150(mm) | 680×650×1220(mm)imes;1220(mm)imes;1220(mm) |
| N/G.W. | 45/65Kg | 50/80Kg | 70/100Kg | 85/115Kg |
