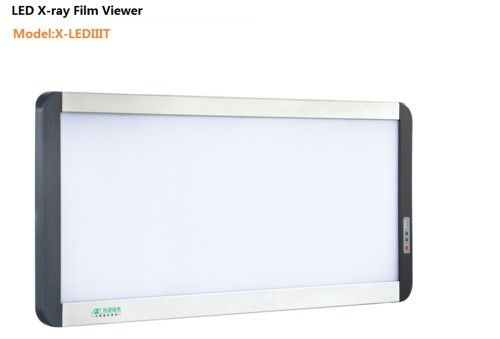

LED X-ray Film Illuminator, Film Viewer, Film Observation, Observation Lamp with CE (X-LEDIIIT)
bargain
add to cart| Model NO. | X-LEDIIIT |
| Certification | CE, EMC |
| Trademark | Keling |
| Specification | CE, ISO13485, ISO9001 |
| HS Code | 9405409000 |
| Emitting Color | White |
| LED Resource | 3 Blanks |
| Transport Package | Wooden Case |
| Origin | Wuhan, China |
Features:
With the function of automatic switching-on upon film-inserting
With the function of delayed switching-off after a film is removed
Install method: Wall-mounted type and bracket type(the bracket is an optional component)
With the function of automatic switching-on upon film-inserting
With the function of delayed switching-off after a film is removed
Install method: Wall-mounted type and bracket type(the bracket is an optional component)
| External dimensions(mm): | 1180*520 |
| Film-viewing area(mm): | 1080*420 |
| Backlight source type: | LED Color temperature: 9,300K |
| Service life: | 80,000 hours |
| Average brightness: | 300 cd/m2-4000 cd/m2 |
| Average illuminance: | 900 lux-13,000 lux |
| Brightness uniformity coefficient of viewing screen: | ≥90%;90%;90% |
| Appropriate films: | Ordinary analog x-ray film High-density digital x-ray film Mammography medical film |
| Power supply:v | voltage self-adaption built-in power supply |
| Voltage: | AC110V-240V |
| Power: | 150W±10%usmn;10%usmn;10% |
| Frequency: | 50/60Hz |
| Operating conditions: | The ambient illuminance in the room shall not exceed 100 lux |
| Dimension(mm) | 1300*140*655 |
| Package | 1 Wooden case |
| Gross Weight | 23.5kg |
