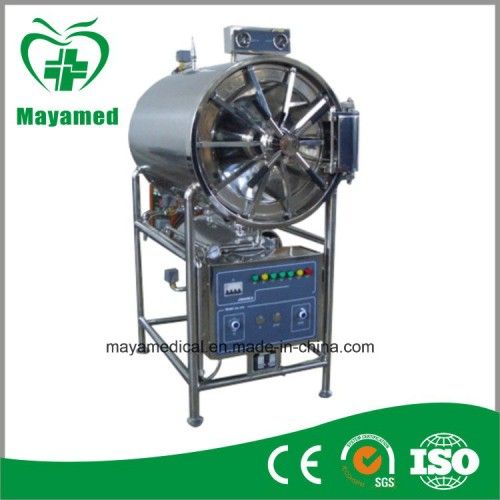

My-T023 Horizontal Cylindrical Pressure Steam Sterilizer
bargain
add to cart| Model NO. | MY-T023 |
| Type | Pressure Steam Sterilization Equipments |
| Product Name | Horizontal Cylindrical Pressure Steam Sterilizer |
| Trademark | MAYA |
| Origin | China |
| Theory | Autoclave |
| Certification | CE, SGS |
| Product Model | My-T023 |
| Transport Package | Carton |
1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can't be start on if the door doesn't close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. Fully stainless steel structure.
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can't be start on if the door doesn't close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. Fully stainless steel structure.
| Technical data | MA-150YDC | MA-200YDC | MA-280YDC | MA-400YDC |
| Sterilizing chamber Volume | 150L φ480×850mmtimes;850mmtimes;850mm | 200L φ515×1000mmimes;1000mmimes;1000mm | 280L φ600×1000mmimes;1000mmimes;1000mm | 400L φ700×1100mmimes;1100mmimes;1100mm |
| working pressure | 0.22MPa | |||
| working temperature | 134ºCordm;Cordm;C | |||
| Adjustment of temperature | 40ºC- 134ºC 134ºCrdm;C 134ºC | |||
| Time of sterilization | 0-99 min | |||
| Time of drying | 0-99 min | |||
| Heat average | ≤±2ºC±2ºCsmn;2ºC±2ºC | |||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz |
| Dimension | 1400×600×130000×1300s;130000×1300 | 1400×670×165070×1650s;165070×1650 | 1400×770×178070×1780s;178070×1780 | 1430×880×183080×1830s;183080×1830 |
| Transport dimension | 1550×750×185050×1850s;185050×1850 | 1560×820×185020×1850s;185020×1850 | 1680×920×210020×2100s;210020×2100 | 1600×1050×210050×2100s;210050×2100 |
| G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG |
