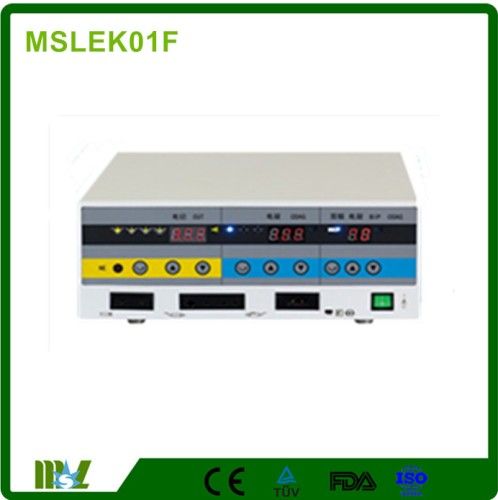

Vaporization Type High-Frequency Electric Knife

Vaporization Type High-Frequency Electric Knife

800-2500 USD

add to cart

Features of the high frequency electric knife:

- Maximum output power: 350W

- Eight output modes: (1) pure cut, (2) mixed cut 1, (3) mixed cut 2, (4) mixed cut 3, (5) electrocoagulation 1, (6) electrocoagulation 2, (7) electrocoagulation 3, (8) Bipolar condensate;

- Electric cut mode: pure cut 100% cut, mixed cut 1 70 % cut, 30% coagulation; mixed cut 2 50 % cut, 50% coagulation; mixed cut 3 70 % cut, 30% coagulation;

- Pure cut: Maximum output power 350W, enabling easy surgery on any tissues and structures;

- Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;

- Electrocoagulation 1: Applicable for general open surgery and fine surgical point coagulation, featuring deep tissue coagulation layer and excellent coagulation effect;

- Electrocoagulation 2: Applicable for general open surgery and fine surgical surface coagulation;

- Electrocoagulation 3: Applicable for general open surgery and deep tissue jet coagulation surgery, featuring strong jet coagulation effect;

- Bipolar coagulation: When the tissues achieve the effect of coagulation, the output power will begin to reduce slowly to achieve good coagulation effect;

- Panel operation: Overall microcomputer automatic control, three-zone (LED) digital display, key function/power, switch/ settings, waterproof panel design;

- Automatic adjustment: Automatically fine adjust power in a certain range to ensure increasing impedance and no power decay in liquid and gasified tissues, the consistency of the cutting effect;

- Automatic recognition: Neutral unipolar/bipolar plate automatic recognition, when using the dual-circuit plates and the contact area less than 60%, it should automatically stop the power output and send sound-light alarm until the contact area returns to normal, which could effectively avoid burning patients by plates.

- Application range: Used in arthroscopic, cystoscopy, endoscopic, hysteroscopy, anorectal, general surgery, etc

Technical parameters of the high frequency electric knife:

Safety standard

I-type BF-type

Ambient temperature range

+10ºC~ +40ºC

Relative humidity range

30 ~ 75%

Atmospheric pressure

700~ 1060 hPa

Power supply

220V ± 22V 50Hz ± 1Hz

Operating frequency

530KHz ±2

Load: Monopolar cut coagulation 300Ω, Bipolar coagulation 100Ω

Rated output power

a)Pure cut: 1W ~ 350W(Peak voltage 1500V)

b) Mixed 1: 1W ~ 250W(Peak voltage 2000V)

c)Mixed cut 2: 1W ~ 200W(Peak voltage 2500V)

d) Mixed cut 3: 1W ~ 150W(Peak voltage 3000V)

e) Electrocoagulation 1: 1W ~ 120W(Peak voltage 3500V)

f) Electrocoagulation 2: 1W ~ 100W(Peak voltage 4020V)

g) Electrocoagulation 3: 1W ~ 80W(Peak voltage 4700V)

h)Bipolar coagulation:1W ~ 70W(Peak voltage 620V)

Overall energy consumption

≤1400VA

Transport and storage

Ambient temperature range: -40ºC ~+55ºC

b) Relative humidity range: ≤93%

Atmospheric pressure: 500hPa ~1060hPa

Standard configuration sheet

1 host

2 electric knives

5 disposable neutral plates

1 bipolar electrocoagulation forcep

1 neutral electrode connecting

1 bipolar forceps wire

1 power line

1 medical foot switch
