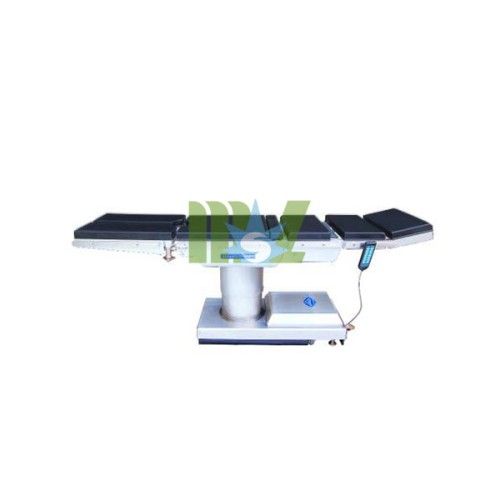

High Quality Electric Operating Table Manufacturer⪻ice (Model MSLMO06)

1, Main Usage & Structure
Main Usage: Electric operating table can be operated for clinical use.

Structure: Operating table consists of two parts: Mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.



2, Specifications:
Dimension of table top:
Overall Length...2150mm
Width...500mm

Dimension of section:
Head Section...250× 500mm
Shoulder Section...250× 500mm
Back Section...250× 500mm
Seat section...550× 500mm
Leg Section...600× 240mm

Table top of from floor:
Max Height...930mm
Min Height...580mm
Adujst...350mm

Range of movements:
Reversed Trendelenburg...≥ 20°
Trendelenburg...≥ 15°
Lateral Tilt...≥ 15°
Backward and Forward Movements...≥ 250mm

Adjustment of sections:
Head Section Raised from the horizontal...≥ 45°
Head Section lowered from the horizonta...≥ 90°
Shoulder Section Raised from the horizontal...≥ 25°
Shoulder Section lowered from the horizontal...≥ 20°
Back Section Raised from the horizontal...≥ 75°
Back Section Raised from the horizontal...≥ 30°
Leg Section Lowered from the horizontal...≥ 90°
Leg section opened...≥ 90°
Horizonal ratation of tabletop...0~180°
Level reset zero (elected timing)...± 2°
Lifting speed...4~16mm/s
Safe working load...135kg
Device safety sortI B
Ingress Protection: IPX4
Power: (AC)220V, 50Hz
Battery capacity ≥ 2.4AH
