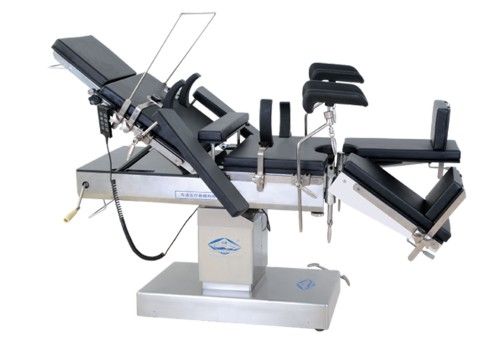

Buy medical electric operation table with best price (MSLMO05)

Main Usage & Structure
A)Main Usage: Electric operating table can be operated for clinical use.
B) Structure: Operating table consists of two parts: Mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.






Dimension of table top:
Overall Length...2100mm
Width...500mm

Dimension of section:
Head Section...250× 500mm
Back Section...545× 500mm
Seat section...450× 500mm
Leg Section...600× 240mm
Kidney Bridge...75× 500mm
Foot Section...180× 273mm

Table top of from floor
Min Height...750mm
Max Height...1000mm
Adujst...250mm

Range of movements:
Reversed Trendelenburg...≥ 20°
Trendelenburg...≥ 15°
Lateral Tilt...≥ 15°
Backward and Forward Movements...≥ 400mm

Adjustment of sections:
Head Section Raised from the horizontal...≥ 45°
Head Section lowered from the horizonta...≥ 90°
Back Section Raised from the horizontal...≥ 45°
Kidney Bridge Elevated...≥ 80mm
Leg Section Lowered from the horizontal...≥ 90°
Leg section opened...≥ 90°
Safe working load...135kg
Lifting speed...4~16mm/s
Foot and leg board board into a horizontal or vertical.
Device safety sort I B
Ingress Protection: IPX4
Power: (AC)220V, 50Hz
Internal electric source: (DC)24V
Battery capacity ≥ 2.4AH


Please contact us for detailed parameters.
