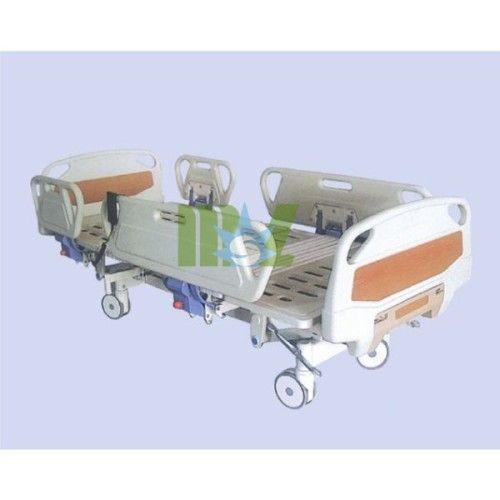

Buy electrical nursing bed units for treatment (MSLNB04)

Electrical Nursing Bed is designed for healing, diagnosis and treatment.


Features
1. Both ends of beds are made of ABS materials and detachable.
2. The main body is made of sprayed high-quality carbon steel.
3. Equipped with central-controlled cφ 125mm astors, stable; To reduce friction with ground, easy to move.
4. Cold-rolled steel plate is used in the tabletop.
5. It used high-quality electric-vat, look nice, save electricity, lower noise, waterproof, long life-span.




Main Structure
The product is composed of the mechanism and the electric control system.

The rotation and movement of back-care bed frame, legs frame and it'raising and lowing of electric nursing bed are driven to the various adjustable positions by motor, if necessary, can be adjusted at your choice.


Technology parameter
Supply: 220V± 10%, 50Hz
Length...2150mm
Width...900mm
Min Height...450mm
Max Height...640mm
Adjust...190mm
Reversed Trendelenburg...≥ 5°
Trendelenburg...≥ 12°
Back Section Raised from the horizontal...≥ 45°
Leg Section Raised from the horizontal...≥ 30°
Foot Section Raised from the horizontal...≥ 120°
Security Load...1700N
Weight...160Kg


Install Step
Install bed head, bed end
Four fixed-axis must be rotated to the bed frame tightly, then insert Head bed rack and Tail bed rack into them.


Transportation and stockpile conditions
A) Environmental temperature: -40centigrade~+55centigrade
B) Relative humidity: ≤ 80%
C) Atmospheric pressure: 50kPa~106.0kPa


Moving Environmental conditions:
A) Environmental temperature: 5centigrade~40centigrade
B) Relative humidity: ≤ 70%
C) Atmospheric pressure: 70.0kPa~106.0kPa
D) Supply voltage: AC220V± 22V, 50Hz± 1Hz.


This device in package should be stored indoor with a relative humidity less than 80%, no erosive air and good ventilation is required. No side-sloping.
It can be shipped in regular transportation without crash, oscillation, rain or direct sunlight.
