Multipurpose Operating Table Manufacturer and Supplier - MSLMO11


Main Usage & Structure

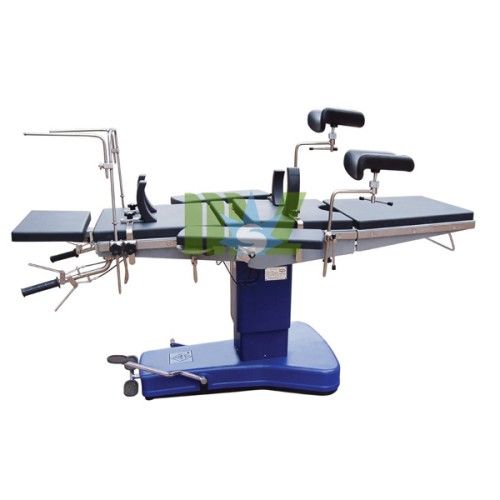

This product is for clinical operating use. The table is single table-board. All positions of the table are controlled entirely from the head-end. The lift system of the table is hydraulic powered, and the adjustment of the posture relies on pneumatic spring. Depending on manual operation, the product can meet the requirement of posture in clinical operation.


Features
1. It is a multipurpose operating table that fits to all surgical operation and inspection.
2. Utilize pedal hydraulic pump which combines the fuel pump, gas tank, and the driving system.
3. The movement of the table-top is controlled by pneumatic spring, easy to operate and reliable to orientation.
4. Reasonable Structure & Fashionable Molding
5. As Kidney Bridge is inside, it's convenient to operate the table.
6. External metal consists of corrosion-proof stainless steel.
7. Mattress consists of both acid resistance and alkali resistance materials.

Structural Principle
1. The table utilizes pneumatic spring as working element to control the movement of the table-board. When the cylinder valve is opened, the top part of the cylinder and the bottom part of the cylinder are connected, and then the piston position can be adjusted. When the piston is adjusted to the position as required, close the cylinder valve, and separate the two parts of the cylinder, then, owe to the air pressure in the cylinder, the position of the piston is fixed.
2. Both the ascending and descending movements of the table top are controlled by the oil pump.




Main Capability Parameter
Table Top: Overall length 1990mm, Width 480mm

Range of accommodation of the height of table-top:
Min. Height≤ 700mm, Max. Height≥ 940mm, rising distance≥ 240mm.
Range of accommodation of Head Rest:
Upward≥ 35° Downward≥ 40° Detachable.

Range of accommodation of back section:
Upward≥ 70° Downward≥ 10°
Range of accommodation of leg section:
Upward≥ 75° Detachable.
Reversed Trendelenburg and Trendelenburg range of table-top:
Reversed Trendelenburg≥ 15° Trendelenburg≥ 15°

Lateral Tilt range of table-top:
Left tilt ≥ 10° Right tilt≥ 10° .
Rising distance of Kidney Bridge: ≥ 80mm
Rated load weight of the table-board: 135
Pedestal could be moved or locked


Attentions
1. After using the table, you should leave it plane and at a lowest position, in order to protect the normal use of the column.
2. The kidney bridge should be kept on the lowest position, before assemble of the folding back to protect the waist panel.
3. Before the operation of the left-right, reversed trendelenburg and trendelenburg of the table, the gesture of the patient should be fixed by the body supporter and binding to prevent the slipping of the patient.
4. All the accessories fixed on the table, the slider, arm supporter and body supporter should be assured of the fixation on the track. The buttons used for fixing the cephalic plate and backboard should be fixed.
5. The arm supporter should avoid the extra pressure and too heavy objects.
6. When operating kidney bridge, do not shake it while lifting or descending to an utmost position, in order to protect it.
7. The operating table is not electronic product, so while producing, we don't put the breakover resistance between the parts into our consideration. Thus, please pay attention to it while using.
8. The operating table in package is on 'stopping' state, so you cannot push it forward. If you want move the table, please trample the left footplate to let the table on 'moving' state.
9. In order to protect the foot lever, it is forbidden to take the foot lever as handle while moving it.
