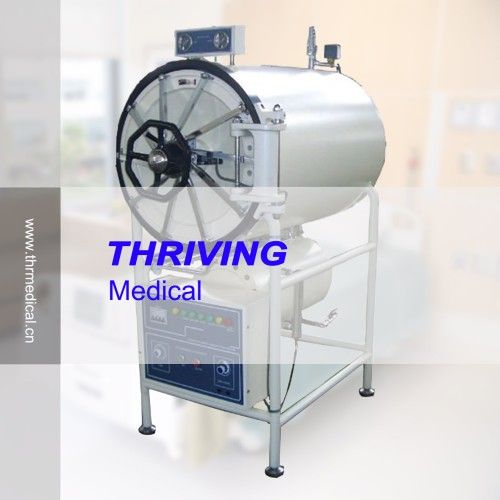

Horizontal Cylindrical Pressure Steam Sterilizer (THR-500YDA)
| Model NO. | THR-500YDA |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Model | Autoclave |
| Specification | CE, ISO |
| Theory | Autoclave |
| Certification | CE |
| LCD Display | Without LCD Display |
| Sterilization Information Recording and Printing | Without Sterilization Information Recording and Printing |
| Trademark | THR |
| Origin | Jiangsu, China |
THR-YDA Horizontal cylindrical pressure steam sterilizer
Characteristics
1. The steam can't go through to chamber when the door haven't close, and the pilot off inform. You can processing dry operate.
2. When the pressure inner over 0.027MPa, the door should be locked and can't be open.
3. If you not choose the sterilzing time and star the machine, buzzer sound.
4. If you mistake open the door in the course of start, the jacker value auto off and open the chamber value.
5. Lack water the pilot on, heating and sterilize pilot off, the buzzer sound and auto release steam.
6. Overload and leakage protection, when leakage or over current occur, it auto off the power.
7. Temperature controlled not work and the inner pressure over 0.165MPa, the safety value auto start open.
| Model | THR-150YDA | THR-200YDA | THR-280YDA | THR-400YDA | THR-500YDA |
| Sterilizing Chamber volume | 150L φ440*1000mm000mm000mm | 200L φ515*1000mm000mm000mm | 280L φ600*1000mm000mm000mm | 400L φ700×1100mmimes;1100mmimes;1100mm | 500L φ700×1300mmimes;1300mmimes;1300mm |
| Working pressure | 0.22MPa | ||||
| Working temperature | 134ºCordm;Cordm;C | ||||
| Adjustment of temperature | 105ºC - 134ºC 134ºCrdm;C 134ºC | ||||
| Time of sterilization | 0-60 min | ||||
| Time of drying | 0-60 min | ||||
| Heat average | ≤±1ºC±1ºCsmn;1ºC±1ºC | ||||
| Power | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | ||
| Dimension(mm) | 1400*600*1300 | 1400*670*1650 | 1400*770*1780 | 1430*880*1830 | 1800*900*1820 |
| Transport dimension(mm) | 1550*750*1850 | 1560*820*1850 | 1680*920*2100 | 1800*1050*2100 | 1850*1050*2100 |
| G.W/N.W(kg) | 320/240 | 350/260 | 465/365 | 530/420 | 580/470 |
Characteristics
1. The steam can't go through to chamber when the door haven't close, and the pilot off inform. You can processing dry operate.
2. When the pressure inner over 0.027MPa, the door should be locked and can't be open.
3. If you not choose the sterilzing time and star the machine, buzzer sound.
4. If you mistake open the door in the course of start, the jacker value auto off and open the chamber value.
5. Lack water the pilot on, heating and sterilize pilot off, the buzzer sound and auto release steam.
6. Overload and leakage protection, when leakage or over current occur, it auto off the power.
7. Temperature controlled not work and the inner pressure over 0.165MPa, the safety value auto start open.
