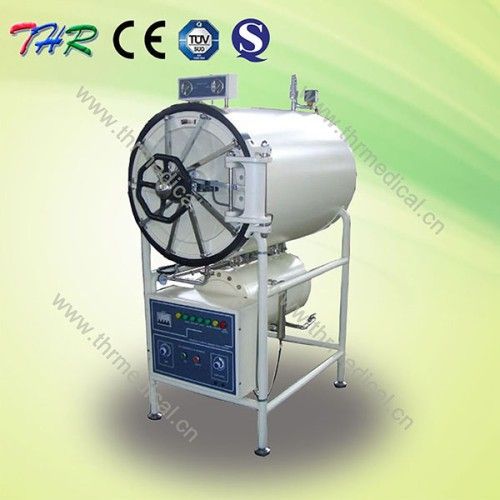

Horizontal Autoclave Steam Sterilizer (THR-150YDA)
Brief Description:
-Model: THR-YDA: 150YDA
-Steriling Volume: 150L(dia480*850mm)
-Working Pressure: 0.22Mpa
-Working temperature: 134° Ceg; Ceg; C
-Adjustable temperature: 40° C-134° C34° Cg; C34° C
-Heat Average: ≤ ± 2° Clusmn; 2° Cg; Clusmn; 2° C
-Time of drying: 0-60mins
-Time of sterilization: 0-60mins
-Power: 6KW/380V 50Hz
-Overall Size: 600*1400*1300mm
-Packing Size: 800*1650*1600mm
-N. W/G. W270KG/360KG
Characteristics
1. The steam can't go through to chamber when the door haven't been closed, and the pilot off inform that you can operate the dry process.
2. When the pressure inner is over 0.072Mpa, the door should be locked and can't be open.
3. If you don't choose the sterilzing time and start the machine, buzzer sound will generate.
4. If you open the door by mistaken in the course of start, the jacker valve off and open the chamber valve automatically.
5. Lack water the pilot on, heating and sterilize pilot off, the buzzer sound will generate and release steam automatically.
6. Overload and leakage protection, when leakage or over current occurs, it cut off the power automatically.
7. Temperature controlled not work and the inner pressure is over 0.165Mpa, the safety valve start open automatically.
Our advantages
1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controllingllinglling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countries
