Horizontal Autoclave (THR-YDA)
| Model NO. | THR-YDA |
| Type | Pressure Steam Sterilization Equipments |
| Electric Tension | 220V |
| Ultra High Temperature Alarm | Ultra High Temperature Alarm |
| Material | Stainless Steel |
| Working Preaaure | 0.22MPa |
| Adjustable Temperature | 40-134°4°eg;4° |
| Time of Sterilization | 0-60 Mins |
| Warranty | One Year |
| Trademark | THR |
| Origin | China |
| Theory | Pressure Steam |
| Certification | CE |
| LCD Display | Without LCD Display |
| Sterilization Information Recording and Printing | Without Sterilization Information Recording and Printing |
| Volume | 90L, 150L, 200L, 280L, 400L, 500L |
| Working Temperature | 134°4°eg;4° |
| Time of Drying | 0-60 Mins |
| OEM | Available |
| Factory Location | Two-Hour Away From Shanghai |
| Specification | 90L φ 440 × 700mmtimes; 700mmimes; 700mm |

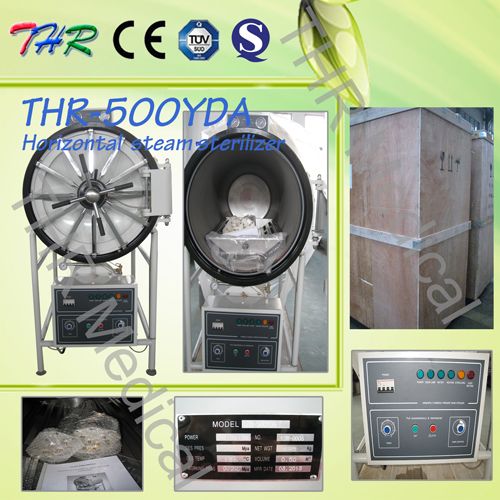

Horizontal Cylindrical Pressure Steam Sterilization(THR-YDA)
Characteristics:
1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can't be start on if the door doesn't close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
Characteristics:
1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can't be start on if the door doesn't close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
| Technical data | THR-90YDA | THR-150YDA | THR-200YDA | THR-280YDA | THR-400YDA | THR-500YDA | ||||
| Sterilizing chamber volume | 90L φ440i;440i;440×700mms;700mms;700mm | 150L φ440i;440i;440×1000mm;1000mm;1000mm | 200L φ515i;515i;515×1000mm;1000mm;1000mm | 280L φ600i;600i;600×1000mm;1000mm;1000mm | 400L Φ700i;700i;700×1100mm;1100mm;1100mm | 500L Φ700i;700i;700×1300mm;1300mm;1300mm | ||||
| working pressure | 0.22MPa | |||||||||
| working temperature | 134ºCordm;Cordm;C | |||||||||
| Adjustment of temperature | 105ºCordm;Cordm;C - 134ºCordm;Cordm;C | |||||||||
| Time of sterilization | 0-60 min | |||||||||
| Time of drying | 0-60 min | |||||||||
| Heat average | ≤±1ºC±1ºCsmn;1ºC±1ºC | |||||||||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz | ||||
| Dimension | 1100×600mes;600mes;600×1300es;1300es;1300 | 1400×600mes;600mes;600×1300es;1300es;1300 | 1400×670mes;670mes;670×1650es;1650es;1650 | 1400×770mes;770mes;770×1780es;1780es;1780 | 1430×880mes;880mes;880×1830es;1830es;1830 | 1800×900mes;900mes;900×1820es;1820es;1820 | ||||
| Transport dimension | 1250×750mes;750mes;750×1850es;1850es;1850 | 1550×750mes;750mes;750×1850es;1850es;1850 | 1560×820mes;820mes;820×1850es;1850es;1850 | 1680×920mes;920mes;920×2100es;2100es;2100 | 1800×1050es;1050es;1050×2100es;2100es;2100 | 1850×1050es;1050es;1050×2100es;2100es;2100 | ||||
| G.W/N.W | 270/200 KG | 320/240 KG | 350/260 KG | 465/365 KG | 530/520 KG | 580/470 KG | ||||
