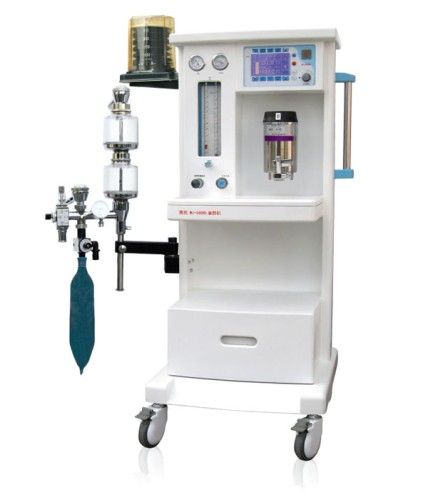

Anesthesia machine(THR-MJ-560B2).
Detailed Product Description
MJ-560B2 anesthesia machines design is union the modern advanced technology and with its strong practicality, which is a machine of excellent performance and fully functional. The remarkable performance, the preferential benefit price, constitutes the best performance-to-price ratio, causes the user to obtain the over #118alue to enjoy.
This machine uses in respiratory control, respiratory intensive care, 5.1-inch high clear display, and real-time reflection respiratory system condition; .
The high-precision evaporator has the stable output concentration with pressure, temperature, and flow automatic compensation; Choose one among Enflurane, isoflurane and sevoflurane for a matching.
Reliable gas Power transmission system;
Reasonable economic and multiple technology configuration, the user s may choose flexibly;
Modular product design According to customers needs upgrade. Main technical parameters Part of Anesthesia Machine
Console High-strength engineering plastic rack, light, beautiful and corrosion resistance
Scope Adults, Children
Gas source oxygennitrous oxide: 0.3~0.5MPa
Flow meter oxygen: 0.1~10L/min nitrous oxide: O. 1~10L/min
Oxygennitrous oxide linkage and nitrous oxide Truncation device When use nitrous oxide, oxygen concentration﹥25%; When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.ut off.
Rapid oxygen flow 35~75L/min
Vaporizer It has the function of pressure, temperature, and flow automatic compensation. The regulation range of evaporator concentration is 0~5vol%. Choose one among Enflurane, isoflurane and sevoflurane for a matching according to the demands of customer.
Low oxygen pressure alarm It will be alarmed when the oxygen pressure < 0.2MPa2MPa
Respiratory circuit Work mode all close. Semi-close. Semi-open Pressure release 1~4KPa
Bellows breathing Adults and children bellows Tidal volume range: 0~1500ml Part of Ventilator
Display mode 5.1-inch high clear display,
Ventilation mode IPPV SIPPV Artificial monitoring MANU(monitor the tidal volume. Ventilation. Respiratory rate. Ratio. Peak pressure when use hand. )PLVPEEP
Ventilation parameters Tidal volume 50~1500ml Frequency 6~60/min breath /expiratory ratio 2: 1~1: 4 Trigger sensitivity -1.0~-0.2Kpa PEEP 0.2~1.0Kpa Pressure Control 1~6.0Kpa
Ventilation monitoring parameters tidal volume. Ventilation. IPPV ratio. Total respiratory rate. Breath /expiratory ratio. Peak pressure. Pressure control. Airway pressure wave. Breath pressure trigger. PEEP. Minimum pressure.
Monitoring oxygen concentration 21%~100%(choose and match)
Security Alert System Oxygen Concentration alarm upper limit setting range 50%-100% (choose and match) low limit setting range 15%-50% Airway pressure alarm upper limit setting range 1.5~6.0Kpa low limit setting range 0.2~3.0Kpa Alarm minute ventilation upper limit setting range 2~30L/min low limit setting range 1~12L/min Asphyxia alarm The machine will give sound and light alarm if there is no tidal volume input in 15s Power failure alarm
Power AC 220V± 10% 50Hz± 1Hz UPS. Battery. (choose and match)oose and match)oose and match)
