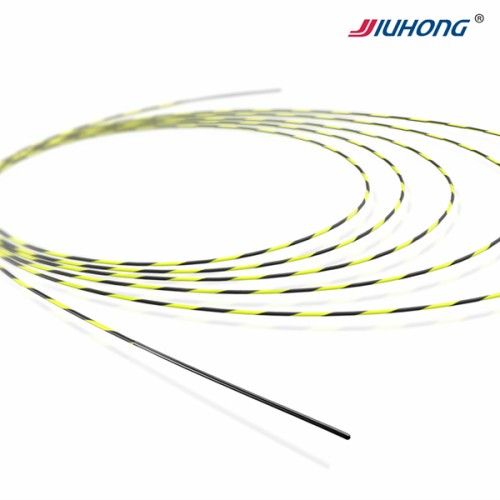

Anti-Drop Tip! ! Super Smooth Soft Head Non-Vascular Guide Wire
| Model NO. | JHY-GW |
| Certification | CE, SGS, ISO13485, Cmdcas |
| Quality Guarantee Period | Two Years |
| Logo Printing | OEM, Customerizaiton |
| Package Material | PE+Tyvek(1059b), Corrugated Carton |
| Transport Package | Standard Carton |
| Origin | Changzhou, Jiangsu, China |
| Type | Endoscopic Accessories |
| Ethylene Oxide Sterilization | Ethylene Oxide Sterilization |
| Group | Adult or Children |
| Lenghth | 4500mm/1500mm |
| Trademark | JIUHONG |
| Specification | Endoscopic Guide Wire |
| HS Code | 9018909010 |
Anti-Drop Tip!! Super Smooth Soft Head Non-Vascular Guide Wire
Intended use
To guide insertion of catheters and etc in non-vascular.
Features
*Innovational triple anti-drop design at hydrophilic tip, with no risk of drop-off.
*Anti-twist innerNiti core wire, offering an excellent twisting and pushing force.
*Super smooth PTFE zebra coating, easier to pass through the working channel.
*Yellow / Black coating, easier to track the guide wire and obvious under X-ray.
*Unique design of tapering tip, highly increase the success rate of surgery.
Material Table
Specifications
Contact Infos
JIUHONG Medical - Jeremy Yang
Phone: +86 186 0258 2990
ENDOSCOPIC ACCESSORIES SINCE 2003
www.jiuhongmed.com
Intended use
To guide insertion of catheters and etc in non-vascular.
Features
*Innovational triple anti-drop design at hydrophilic tip, with no risk of drop-off.
*Anti-twist innerNiti core wire, offering an excellent twisting and pushing force.
*Super smooth PTFE zebra coating, easier to pass through the working channel.
*Yellow / Black coating, easier to track the guide wire and obvious under X-ray.
*Unique design of tapering tip, highly increase the success rate of surgery.
Material Table
| Component | Material | Standard |
| Guide Wire Rod | Niti | ASTM F 2063-2005 |
| Soft Spring Tip | X5CrNi18-10 | EN10088-1-2005 |
| Coating | PTFE | EN ISO13000-1-2005 |
| Fixed Spring | X5CrNi18-10, Platinum | EN10088-1-2005, Pt90/Ir10 |
| Softhead of Coated Guide Wire | Pebax, Tungsten, Hydrophilic Coating | EN ISO 1874-1-2010 GB/T4295-2008 EF50L Coating |
Specifications
| Model | O.D.(mm) | Length(mm) |
| JHY-GW-80-150-C1 | 0.80(0.032") | 1500 |
| JHY-GW-80-260-C1 | 0.80(0.032") | 2600 |
| JHY-GW-80-450-C1 | 0.80(0.032") | 4500 |
| JHY-GW-88-150-C1 | 0.88(0.035") | 1500 |
| JHY-GW-88-260-C1 | 0.88(0.035") | 2600 |
| JHY-GW-88-450-C1 | 0.88(0.035") | 4500 |
| JHY-GW-63-150-C1 | 0.63(0.025") | 1500 |
| JHY-GW-63-260-C1 | 0.63(0.025") | 2600 |
| JHY-GW-63-450-C1 | 0.63(0.025") | 4500 |
Contact Infos
JIUHONG Medical - Jeremy Yang
Phone: +86 186 0258 2990
ENDOSCOPIC ACCESSORIES SINCE 2003
www.jiuhongmed.com
