Disposable Zebra Guide Wire
| Model NO. | JHY-GW |
| Material | Niti, PTFE |
| Ethylene Oxide Sterilization | Ethylene Oxide Sterilization |
| Group | Adult or Children |
| Trademark | JIUHONG, OEM, GLOBAL |
| Origin | Changzhou, Jiangsu |
| Type | Disposable Medical Supplies |
| Certification | CE, SGS, FDA, ISO13485, Cmdcas |
| Quality Guarantee Period | Two Years |
| Logo Printing | We Can Do OEM |
| Specification | FDA, CE, ISO |
| HS Code | 9018909010 |

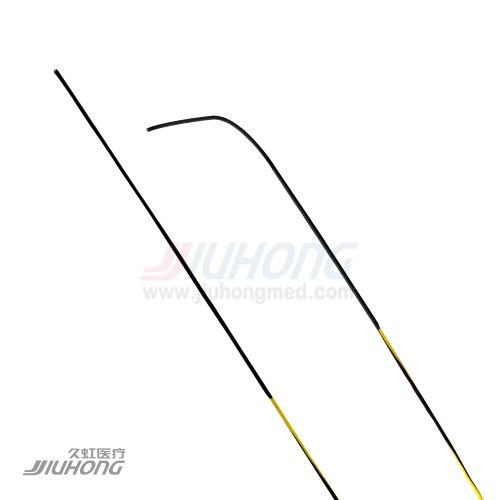

ERCP PTFE Coated Hydrophilic Guidewire
1. Usage:
It is used to guide dilation balloon and stent introducer device in upper and lower digestive tract and respiratory tract.
2. Characteristics:
* With nickel-titanium alloyed super-elastic wire and head point of stainless steel soft spring, which is impossible to break off through precision welding.
* The head point is differentiated into olive-head shape and interchangeable flat-head shape.
3. Materials:
4.Specification:
1. Usage:
It is used to guide dilation balloon and stent introducer device in upper and lower digestive tract and respiratory tract.
2. Characteristics:
* With nickel-titanium alloyed super-elastic wire and head point of stainless steel soft spring, which is impossible to break off through precision welding.
* The head point is differentiated into olive-head shape and interchangeable flat-head shape.
3. Materials:
| Component | Material | Standard |
| Guide wire rod | Niti | ASTM F 2063-2005 |
| Soft spring tip | X5CrNi18-10 | EN10088-1-2005 |
| Coating | PTFE | EN ISO 13000-1-2005 |
| Fixed spring | X5CrNi18-10, platinum | EN10088-1-2005,Pt90/Ir10 |
| Soft head of coated Guide Wire | Pebax, Tungsten, Hydrophilic coating | EN ISO 1874-1-2010,GB/T4295-2008 EF50L Coating |
4.Specification:
| Model | O.D.(mm) | Worth Length(mm) | Characteristics |
| JHY-GW-80-150-C1 | 0.032" | 1500 | Hydrophilic Guide Wire |
| JHY-GW-80-260-C1 | 0.032" | 2600 | Hydrophilic Guide Wire |
| JHY-GW-80-450-C1 | 0.032" | 4500 | Hydrophilic Guide Wire |
| JHY-GW-88-150-C1 | 0.035" | 1500 | Hydrophilic Guide Wire |
| JHY-GW-88-260-C1 | 0.035" | 2600 | Hydrophilic Guide Wire |
| JHY-GW-88-450-C1 | 0.035" | 4500 | Hydrophilic Guide Wire |
