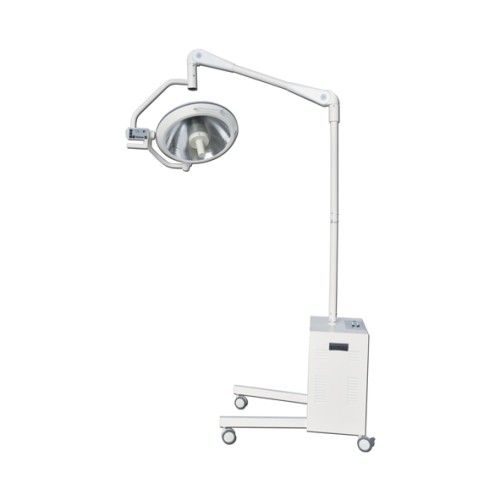

Surgical Equipment Overall Shadowless Lamp (AM500-III (AC/DC))
AM500-III shadowless operation lamp is suitable for the requirements of various operation conditions and it is ideal operating lighting equipment for modern operation rooms and clean operation rooms.
Features:
The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.
The removable handle sheath can be disinfected at the high temperature of 135 ºC.rdm;C.rdm;C.
The special radiation filter reducing the heat to the minimum level.
The depolished panel is made of imported material makes the light rays softer.
The multi-flake retroreflector made of imported aluminum sheet, has the features of no coating film and never fading.
Light adjustment circuit adopts CPU control,enabling increase or decrease of illumination and boasting brightness memory.
One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2 second when the main bulb malfunctions, and it has indicators for the damage of main or standby bulb.
Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.
AC/DC,may satisfy when the power failure continues the surgery.(AC/DC type)
TECHNICAL SPECIFICATION:
Illumination: 80, 000-160, 000LX (at 1m distance)
Facula diameter: φ 100~φ 280mmhi; 280mmhi; 280mm
Depth of light beam: ≥ 600mm00mm00mm
Brightness adjustment: 8-stage continuous
Shift of major and stand by lamps: Automatic
Color temperature: 4500K± 500Kmn; 500Kmn; 500K
Temperature rise: ≤ 12º C2º Cdm; C2º C
Temperature rise on the head of patient: ≤ 2º C2º Cdm; C2º C
Diameter of lamp holder: 500mm
Mains voltage: AC220V± 20% 50Hz20% 50Hz20% 50Hz
Bulb voltage: AC24V Bulb power
Input power: 200VA
FEATURES:
1. Imported aluminum sheet squamulose reflector
2. Imported polish panel
3. Titanium main arm
4. Optional imported spring arm
5. OSRAM halogen bulbs
6. Automatic change to standby bulb in 1/2 second
7. Indicator for damaged bulb
8. Dischargeable handle
9. Battery is optional
