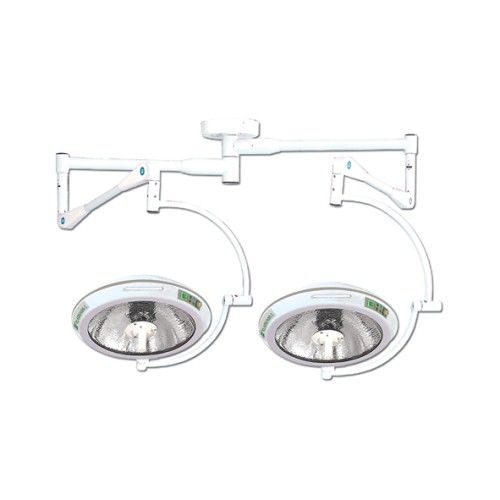

Surgical equipment Overall Shadowless Lamp (AM600/600-I)
AM600-I, AM600/600-I shadowless operation lamp is suitable for the requirements of various operation conditions and it is ideal operating lighting equipment for modern operation rooms and clean operation rooms.
Features:
Light adjustment circuit adopts SCR adjustment.
The removable handle sheath can be disinfected at the high temperature of 135 ºC.rdm;C.rdm;C.
The retroreflector made of imported aluminum sheet has the features of no coating film and never fading.
The special radiation filter reducing the heat to the minimum level.
The rippled panel made of imported material makes the light rays softer.
One lamp holder with two bulbs,In case the primary bulb is in fault, the hand switch can be used to switch to the secondary bulb for lighting.
Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.
TECHNICAL SPECIFICATION:
Illumination: 80, 000-160, 000LX (at 1m distance)
Facula diameter: φ 100~φ 280mmhi; 280mmhi; 280mm
Depth of light beam: ≥ 600mm00mm00mm
Brightness adjustment: Stepless adjustment
Shift of major and stand by lamps: Hand operated
Color temperature: 4500K± 500Kmn; 500Kmn; 500K
Temperature rise: ≤ 12º C2º Cdm; C2º C
Temperature rise on the head of patient: ≤ 2º C2º Cdm; C2º C
Diameter of lamp holder: 600mm × 2imes; 2imes; 2
Mains voltage: AC220V± 20% 50Hz20% 50Hz20% 50Hz
Bulb voltage: AC24V Bulb power
Input power: 220VA × 2imes; 2imes; 2
Height for installation: 280-320cm
FEATURES:
1. Imported aluminum sheet
2. Imported rippled panel
3. OSRAM halogen bulbs
4. Indicator for damaged bulb
5. Dischargeable handle
