P16 Stadium LED Screen /LED Basketball Stadium Screens/LED Display Stadium

685 USD

P16 stadium led screen /led basketball stadium screens/led display stadium

Specifications

P16mm Led Scoreboard sport/stadium led display

1high resolution and brightness

2outdoor sport use
P16mm Led Scoreboard sport/stadium led display

Product Description:

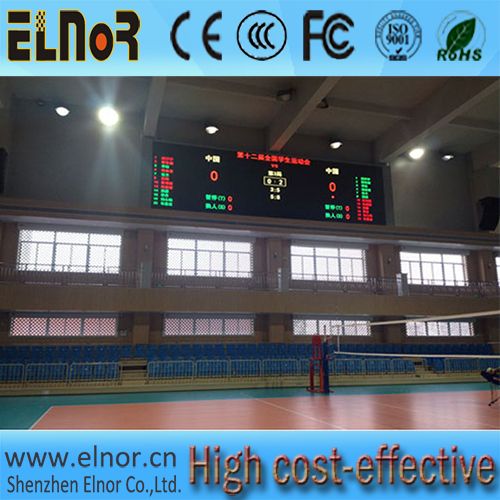

The Sports Scoreboard Display is most commonly used for showing scores/live matches and advertising for instance in a football ground, cricket ground, baseball ground, etc for outdoor purposes and also indoor as well for basketball, ice hockey, tennis court,. We have the experience of providing both indoor and outdoor perimeter displays. The below is an example of the technical specs with reference to a 16mm outdoor led perimeter display. For more information on other pixel pitch, drop us an e-mail and we will reply with full details.

Part B: Display Technology Data
(1)LED Parameter
Sequence	Led	Wavelength		Luminosity	Chip Manufacturer
1	Red	620-630 (nm)		450 (mcd)	Taiwan
2	Pure Green	520-525 (nm)		1800 (mcd)	CREE
3	Pure Blue	465-470 (nm)		350 (mcd)	CREE
(2)Module Parameter
Sequence	Item		Parameter
1	Pitch (mm)		16
2	LED Standard		5 Oval Lamp
3	LED Arrangement		2R1G1B
4	Brightness (cd/m^2)		≥7000
5	Density (Real) (dots/m^2)		3906
6	Density (Virtual) (dots/m^2)		-
7	Module Size (mm)		(L)=256; (H)=128 ;
8	Module Resolution (dots)		16*8
9	Cabinet Size (mm)		(L)=1024 ; (H)=768 ; (W)=150
10	Resolution/Cabinet		80*80
11	Cabinet Material		Aluminum/Iron Cabinet
12	Waterproof Material		Silicone WITH SOFT MASK
13	Waterproof Size		Display Size
14	Angle-Level (angle)		110 (Right/Left)
15	Angle-Vertical (angle)		40 (Up/Down)
16	Best-Vision-Distance (m)		10-160
17	Gray Grade (Rank)		≥16,348
18	Display Color (Color)		Full Color (16.7m)
19	Display Mold		Virtual Image Control
20	Drive Mode		Static, Constant Current Driver
21	Control Mode		Synchrony Transfer
22	In-Interface		RS232
23	Connecting Series		VGA/NTSC/PAL
24	Cabinet Weight (kg/pc)		65
25	Max Power Consumption (KW/m^2)		1100
26	Avg Power Consumption (KW/m^2)		500
27	Life Time (hr)		100,000
28	Voltage (V)		AC: 220 /380 ±10 %, 50 Hz
29	Control Distance (m)		﹤ 100
30	Protection Level (IP)		65
31	LED Parameter		DIP 546
32	Time (hr)		﹥ 10,000
33	Maintain		Front/Back
34	Temperature ()		-20 ~ 50
35	Relative humidity (RH)		10% ~ 95%
36	Software		Windows 98, XP,2000, 2003 etc.

Function and Technology Character

(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

(2) 16,348 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromo can be adjusted by manual and sensor, whose scope is 256 grade.

(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

(4) Line-Double technology is adopted for the picture adjustment.

(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.

(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

Product Advantages
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle...

3) Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4) Service advantage: with professional service team for 24 hours service!
It can be used in outdoor sites such as large-scale square, stadium, racecourse, wharf, airport and so on.

Main features
1Customized design
2True color reproduction & authentic video quality
3Ultimate system reliability
4Fast set-up, easy service and full control

Advantages
1High brightness and be adjustableBuilt-in functional card support brightness automatically adjustment.
2A turn-key solution including professional sports software and hardware.
3Rich advertising LED display engineering experience both in domestic and oversea market.
4Unbeatable product stability through strict quality control system.

Our service
1Your inquiry related to our products or price will be replied in 24hrs
2Protection of your sales area,ideas of design and all your private information
3Top quality+reasonable price+responsible after service=successful & win

Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC

Outdoor digital comercial advertising p16 LED display/LED screen/outdoor LED display billboard

LED module parameter

Dimensions (w x h)	256mm x 128mm	Resolution (w x h)	16 x 8
Pixel Pitch (mm)	16	Pixel Density	3906/
Brightness	6000 nits/m2	Scan mode	stacit
Min Viewing distance	16 meters	Max Viewing distance	According to screen area
Pixel Configuration	1R, 1G, 1B	Weight	0.55 kg
Average Power/	300 watts	Max Power/	750 watts

FAQ
OUR COMPANY provides onsite product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipments.

2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection

What we can do
1. All of our products have preceeded aging before shipment and we guarantee to use our products safely.
2. Support prints your logo on products and let your logo shine anywhere.
3. OEM/ODM orders are warmly welcome.

Warranty policy
1. All products and accessories have been tested before ship out.
2. All products have 2~5 years warranty.
3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

Welcome to your inquiry! Thank you very much!!!
