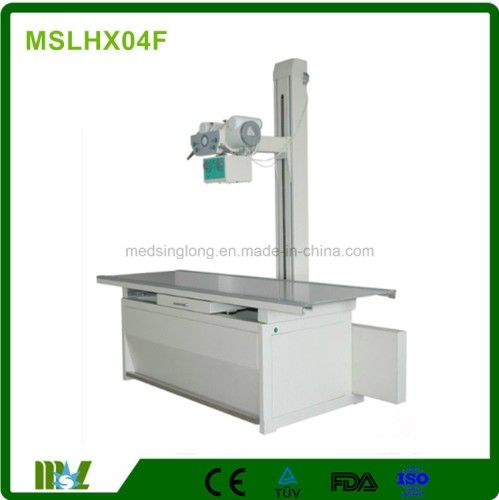

200mA High Frequency Medical Digital X-ray Machine
Specification of the 200ma high frequency x ray machine:
(1). Working condition
Ambient temperature: +100ºC~+400ºC
Relative humidity: 30%~70%
Atmospheric pressure: 70Kpa~106Kpa
(2). Transportation and storage conditions
Ambient temperature: -200ºC~700ºC
Relative humidity: 10%~1-100% (imcluding condensation)
Atmoshperic pressure: 50Kpa~106Kpa
(3). Main technical parameters
(4). main configuration
If you are interested in our products, please feel free to contact with me, we will provide you the best price and service!
Contact person: Christy Fung
Mob: +86 13631445394
(1). Working condition
Ambient temperature: +100ºC~+400ºC
Relative humidity: 30%~70%
Atmospheric pressure: 70Kpa~106Kpa
(2). Transportation and storage conditions
Ambient temperature: -200ºC~700ºC
Relative humidity: 10%~1-100% (imcluding condensation)
Atmoshperic pressure: 50Kpa~106Kpa
(3). Main technical parameters
| Function | Radioagraphy |
| X-ray machine maximum output power | Intermittent mode 100kV, 200mA, 20kW |
| Adjusting range of x-ray machine tube current and tube voltag | Range of x-ray tube current: 16mA~200mA |
| Range of x-ray tube voltage: 40kV~125kV | |
| Exposure time | 0.0025s ~ 6.4s |
| Nominal working frequency | ≥30kHz |
| Power supply | Three-phase five wires 380V±38V |
(4). main configuration
High frequency high voltage generator ( including control console) | ||
| X-ray tube | Focus: small focus 1.0mm large focus 2.0mm | |
| Anode speed: 2800r/min | ||
| Anode thermal capacity: 140khu | ||
| Collimato power supply | AC 24v | |
| Radiography bed | Single phase 220V ±22V, 50Hz ±1Hz | |
| X-ray components supporting frame | Braking mode: elecrtomagnetic brake, braking force ≥98N, button operation | |
| Filter: N40, r10, 110, stationary type, size: 14''*17'' | ||
| Bed size: L2000mm*W760mm*H685mm | ||
| Vertical moving range: ≥825mm | ||
| Horizontal moving range: ≥250mm | ||
If you are interested in our products, please feel free to contact with me, we will provide you the best price and service!
Contact person: Christy Fung
Mob: +86 13631445394
